Von Duprin RXQEL9927NL-OP-F 3 313 Grade 1 SVR Exit Device 710 Instructions

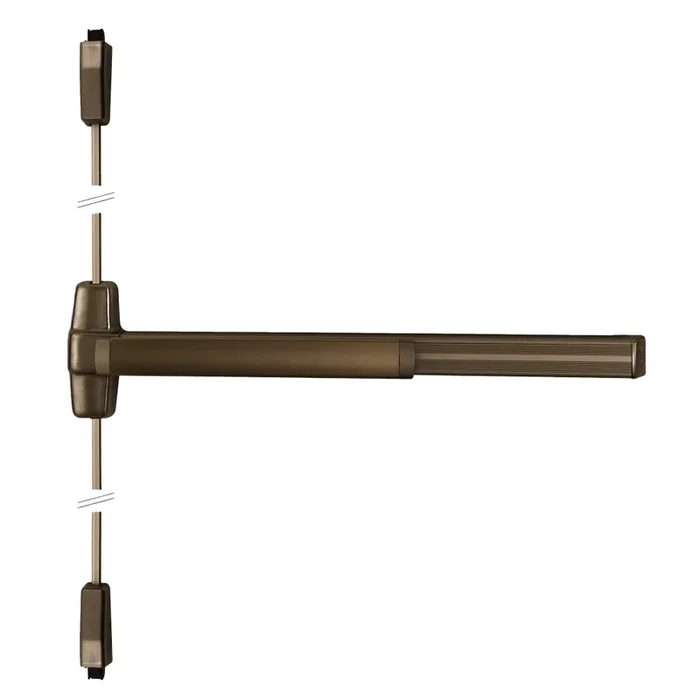

Von Duprin RXQEL9927NL-OP-F 3 313 Grade 1 SVR Exit Device 710 offers a reliable and robust solution for high-traffic environments. This Grade 1 Surface Vertical Rod Exit Device features a wide stile pushpad, ensuring ease of use and accessibility. Designed for fire-rated applications, it accommodates doors up to 84 inches high and is perfect for both single and double doors. With motorized latch retraction and a night latch function, this exit device enhances security while allowing for smooth and efficient egress. The device includes a request to exit switch and is field reversible, making it adaptable to various installation needs. Crafted from dark bronze anodized aluminum, it combines durability with an aesthetically pleasing finish. The device complies with ANSI/BHMA A156.3 2014 standards and is UL listed for panic exit hardware, providing peace of mind in emergency situations. The RXQEL9927NL-OP-F is designed to fit doors with 86 or 161 cutouts and features a deadlocking anti-friction top and bottom bolt for added security. Installation is straightforward, as it includes all necessary fasteners for metal or wood doors. Choose the Von Duprin RXQEL9927NL-OP-F for a dependable exit solution that prioritizes safety and functionality.
Grade 1 SVR Exit Device 710
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Fire-rated Device, 84″ Door Height, Night Latch Function, Cylinder Only, Motorized Latch Retraction, Request to Exit Switch, Less Dogging, Dark Bronze Anodized Aluminum Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8″ (1006 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
- Door undercut 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84″
Door Material: All Types
Door Thickness: 1-3/4″
Door Width: 28″ – 36″
Electric Options: Motorized Latch Retraction
Finish: 313
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Night Latch
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 20 lbs.
Strike Bottom: 304L
Subtype: Surface Vertical Rod Exit Devices
Switch Type: Request to Exit
Top Strike: 299
Trim Part No: 110MD-NL US10B
Trim Type: Cylinder Only
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
