Von Duprin 9827L-NL-06-F 3 313 RHR Grade 1 SVR Exit Device 710 Instructions
Von Duprin 9827L-NL-06-F 3 313 RHR Grade 1 SVR Exit Device 710 offers robust security and reliable functionality for commercial applications. This Grade 1 Surface Vertical Rod Exit Bar features a wide stile pushpad and is designed for 36″ fire-rated doors with a height of 84″. With its night latch function and less dogging feature, this exit device ensures ease of use without compromising safety. Certified to ANSI/BHMA A156.3 2014 standards, the 9827 device is UL listed for panic exit hardware, making it suitable for all types of single or double doors. Its smooth mechanism case allows for seamless operation, while the dark bronze anodized aluminum finish adds an attractive aesthetic to any entrance. The device is field reversible, accommodating various door setups. The deadlocking latch bolt provides enhanced security, featuring a 5/8″ throw to keep doors secure. Designed for standard hollow metal doors with 86 or 161 cutouts, it installs easily with included fasteners. The vertical rods support doors up to 7′ in height, with optional extensions available for taller doors. With a limited three-year warranty, the Von Duprin 9827L-NL-06-F ensures reliable performance and peace of mind for any commercial environment.
Grade 1 SVR Exit Device 710

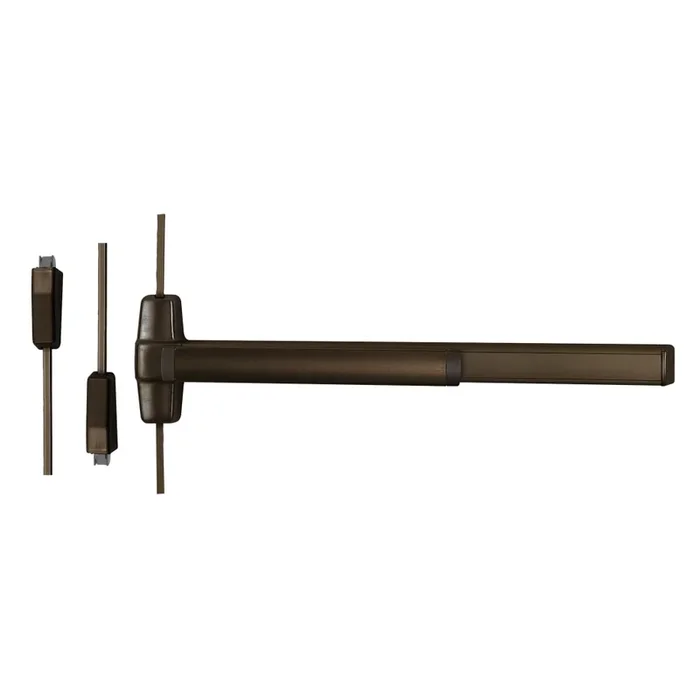

Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Fire-rated Device, 84″ Door Height, Night Latch Function, 06 Lever with Escutcheon, Less Dogging, Dark Bronze Anodized Aluminum Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8″ (1006 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
- Door undercut 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84″
Door Material: All Types
Door Thickness: 1-3/4″
Door Width: 28″ – 36″
Finish: 313
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Night Latch
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 22 lbs.
Strike Bottom: 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Design: Lever with Escutcheon
Trim Part No: 996L-NL-06-R/V SP313
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
