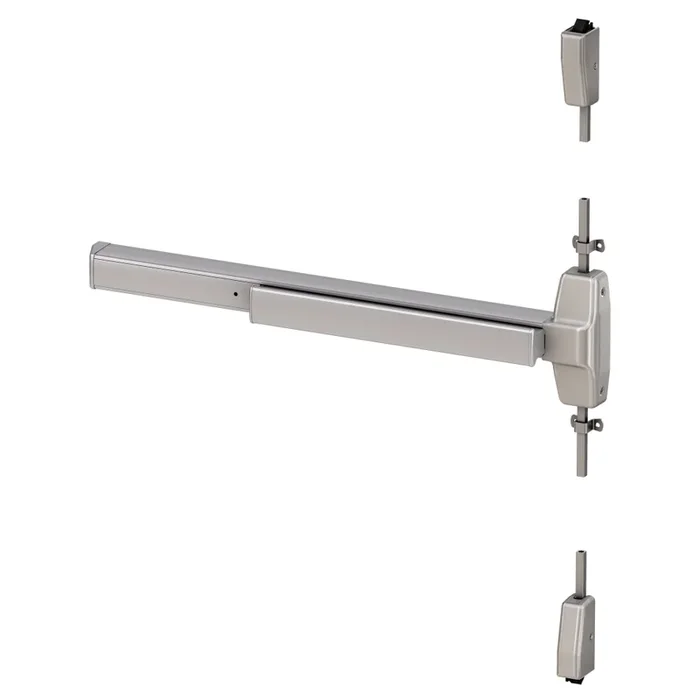

Von Duprin 7827EO 3 630 Grade 1 SVR Exit Device Instructions
Von Duprin 7827EO 3 630 Grade 1 SVR Exit Device offers exceptional security and functionality for various commercial applications. This Grade 1 surface vertical rod exit device features a wide stile pushpad, making it an ideal choice for environments such as warehouses, industrial facilities, offices, multifamily buildings, retail spaces, and other commercial properties. The device is designed for exit-only functionality and includes hex key dogging for enhanced convenience. With a 36-inch length and a non-handed configuration, this exit device is versatile enough to accommodate both single and double door applications. It is certified to ANSI/BHMA Grade 1 standards, ensuring reliable performance and durability. The satin stainless steel finish (630/US32D) not only enhances the device’s aesthetic appeal but also provides resistance against wear and corrosion. The Von Duprin 7827EO is designed to meet various needs, available in multiple lever designs and finishes. Its installation is straightforward and suitable for all door types, with a minimum stile size of 3-11/16 inches. Backed by Allegion’s expert services, this exit device guarantees peace of mind and security in any commercial setting. Choose the Von Duprin 7827EO for a dependable solution to your door hardware needs.
Grade 1 SVR Exit Device
Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36″ Device, Exit Only, Hex Key Dogging, Satin Stainless Steel Finish, Non-Handed
Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 78 exit device is a wide stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. ItÃs available in a wide range of device types, lever designs, options, and finishes.â
Wide stile surface vertical rod exit device at a mid-price option.
Experience the quality and reliability you trust from Von Duprin with a mid-range price option. The Von Duprin 78 Series exit devices deliver dependable performance and peace of mind, ideal for environments such as warehouses, industrial sites, offices, multifamily buildings, retail spaces, and commercial real estate. The 78 Series is a wide-stile device, available in a variety of types, lever designs, options, and finishes to meet diverse needs.
- Certified to ANSI/BHMA Grade 1 standards and supported by Allegion’s expert services and assistance.
- Offered in various device types, lever styles, and finishes to suit diverse needs.
- Available in 3-foot and 4-foot lengths, with the flexibility to adjust on-site for both single and double door applications.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3 2014
Commercial Residential: Commercial
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Material: All Types
Door Width: 3′
Finish: 630/US32D
Finish Family: Matte Silver
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Mechanical Function: Exit Only
Minimum Stile Size: 3-11/16″
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 7827 Series Surface Vertical Rod Exit Device
Strike Bottom: 248L4/304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Resources
- Von Duprin 70 Series Catalog
- Von Duprin 78 Series Cut Sheet
- Von Duprin 78 Series Installation Instructions
