Description

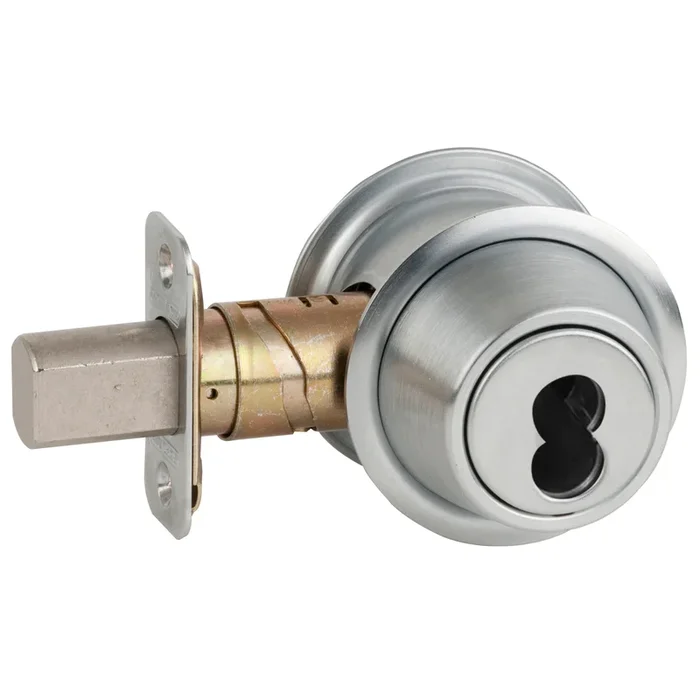

Schlage B563J626 Grade 2 Classroom Deadbolt, Interchangeable Core, Satin Chrome Finish
Schlage Commercial B563J626 Grade 2 Classroom Deadbolt offers a reliable security solution for educational and institutional settings. This deadbolt features a key-operated mechanism from the outside, while the inside turn unit allows for easy retraction of the bolt, enhancing both security and convenience. With ANSI certification A156.36, this lock meets rigorous industry standards for quality and safety. Designed to accommodate doors ranging from 1-3/8″ to 1-7/8″ thick and an adjustable backset of 2-3/8″ or 2-3/4″, the B563J626 is versatile enough to fit various door configurations. Its robust construction is complemented by a satin chrome finish, ensuring durability and aesthetic appeal. The lock is UL Listed for a 3-hour fire door, making it an excellent choice for environments where fire safety is paramount. The B563J626 is part of the B500 Series and features a square corner deadbolt strike with dimensions of 1-1/8″ x 2-3/4″. Crafted from zinc base material, it comes with a limited 3-year mechanical warranty, reflecting Schlage’s commitment to quality craftsmanship. Elevate your security with the Schlage Commercial B563J626 Classroom Deadbolt, where strength and functionality meet.
Grade 2 Classroom Deadbolt Less Full Size Interchangeable Core with 12287 Latch and 10094 Strike Satin Chrome Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Classroom Deadbolt – Deadbolt Thrown or Retracted by Key Outside, Inside Turn Unit Will Retract Bolt Only
- ANSI Certified A156.36
- 1-3/8″ to 1-7/8″ Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
- 9/16″ (14 mm) throw deadlatch resists pry-in attacks and “shimming” of the latch
- Exclusive concealed wood frame reinforcer protects wood jamb against kick-in attacks
- Cylinder collar reinforced with security inserts to resist wrenching and prying
- Thumbturn “holdback” feature retains the deadlatch in a retracted position when desired
Attributes
Manufacturer surcharge: 4.5%
Alternate Codes: B563J626
Ansi: A156.36, 2010
Ansi Function: E0172 – Classroom Deadbolt
Baa Qualified: Yes
Backset: Adjustable 2-3/8″ or 2-3/4″ Backset
Bolt Projection: 1″
Bolt Protection: 1 In.
Category: Commercial Deadbolts, Commercial Locks, Deadbolts, Lock Sets, Single Cylinder, Single Cylinder (Commercial)
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2″ or 2-1/8″ Bore
Cylinder Type: Schlage FSIC Less Core
Deadbolt Functions: Classroom Cylinder x 1 Way Thumb Turn
Deadbolt Type: Commercial
Dimension: 2-5/8″ Diameter
Door Application: Commercial Deadbolts
Door Range: 1-3/8″ to 1-7/8″
Door Thickness: 1-5/8 In. – 2 In.
Dust Box: None
Faceplate Style: Circular Drive-In, Radius Corner, Square Corner
Finish: Satin Chrome
Finish Code: US26D
Finish Color: Brushed Chrome
Finish : Satin Chrome
Finish Family: Matte Silver
Function: 563-Classroom Deadbolt Lock
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed
Keyway Brand: Schlage
Language: English
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Faceplate Dimension: 1″ x 2-1/4″ and 1″ Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Latchbolt Type: Deadbolt
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Keyed Outside x Classroom Thumbturn Inside
No Of Inners: 1
Of Keys: 2
Order_ Qty: 1
Origin: USA
PO date: 2024-09-24
Pack Qty: 1
Product Height: 4.13″
Product Width: 2.54″
Series: B500 Series
Std Latch Backset Dim: Adjustable for 2-3/8″ or 2-3/4″
Std Latch Number: 12-288
Std Latch Type: Square Corner
Std Strike Height: 2-3/4″
Std Strike Number: 10-094
Std Strike Type: Square Corner
Std Strike Width: 1-1/8″
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8″ x 2-3/4″
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
