Description

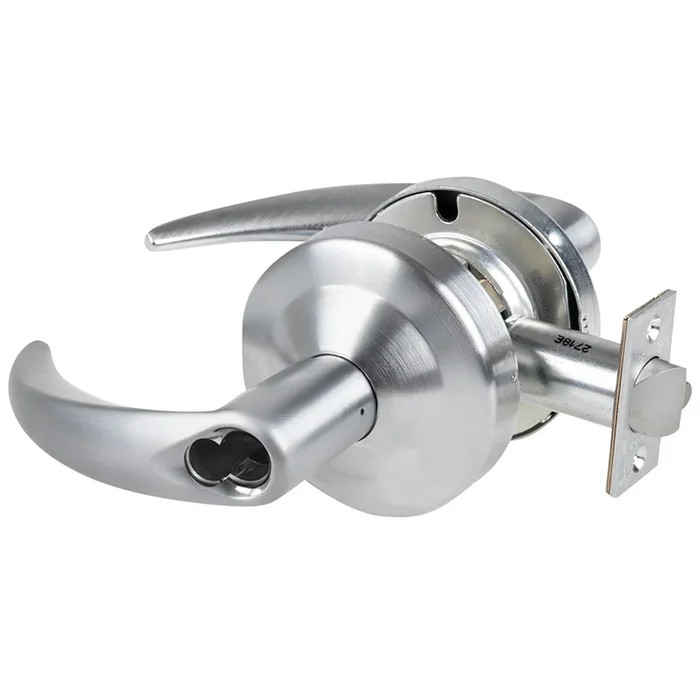

Schlage ALX70J OME 626 Lock Cylindrical Lock
- Classroom – Outside Lever Locked and Unlocked by Key, Inside Lever Always Unlocked
- ANSI/BHMA Certified A156.2
- 1-3/8″ to 1-3/4″ Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F84 – Classroom
Ansi Function : Classroom
Backset: 2-3/4″ Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Schlage FSIC Less Core
Cylinders Present: Single Cylinder
Design: Omega Lever
Door Thickness: 1-3/8 In. – 1-3/4 In.
Dust Box: None
Finish: 626/US26D
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 70-Classroom Lock
Function Family: Classroom
Grade: Grade 2
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8″
Latch Number: 47267042
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: OME – Omega
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: Omega
Leverknob Design: OME – Omega Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Classroom Lock
Manufacturer Function : Outside lever locked and unlocked by key. Inside lever always unlocked for immediate egress.
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/8″
Num Pins: 6
Origin: Mexico
Pack Height: 4.75″
Pack Length: 9.5″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25″
Pbs Options: 4540298
Pins: 6
Product Height: 4.5″
Product Length: 9.25″
Product Width: 8.13″
Projection: 3-5/16″
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: OME – Omega
Rose Escutcheon Dimensions: 3-7/16″
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: Omega
Screws: Combination
Series: ALX Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike: ANSI Strike
Strike Dimensions: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: J
Structure Function: 70
Structure Latch: D
Structure Latch Number: 47267042
Structure Outside Finish: 626
Structure Outside Trim: OME
Structure Series: ALX
Structure Strike Number: 47267101
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Unit of Measure: Each
