Description

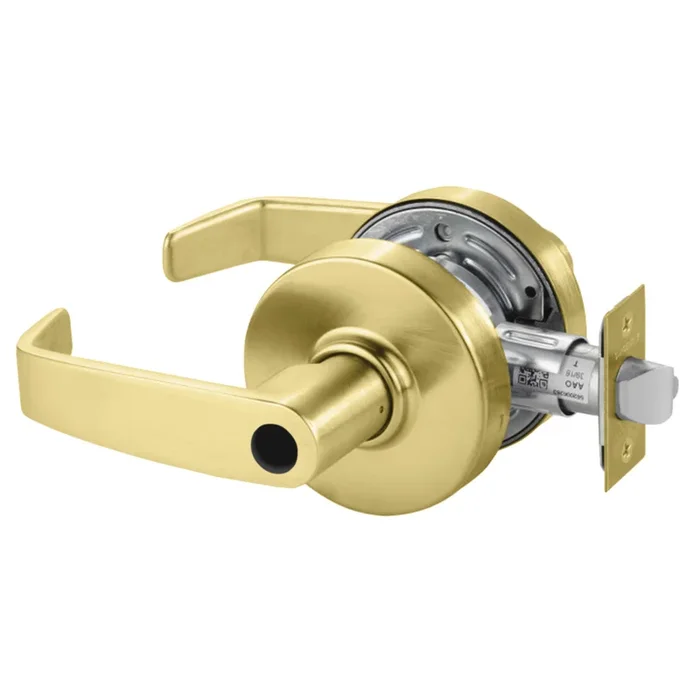

Sargent 28LC-7G05 LL 04 Grade 2 Cylindrical Lever Lock
Sargent 28LC-7G05 LL 04 Grade 2 Cylindrical Lever offers a robust solution for entrance and office applications in commercial settings. Constructed for durability, this Grade 2 cylindrical lock features a conventional design that is less cylinder, making it ideal for medical offices, hotels, and government facilities. It exceeds ANSI/BHMA A156.2 standards, ensuring reliable performance and longevity. The lock is designed for doors with a thickness of 1-3/4″ and comes with a standard 2-3/4″ backset. Its solid steel cylindrical housing, complemented by a satin brass finish, delivers a refined look while maintaining strength. The L lever design provides a comfortable grip, ensuring ease of use in high-traffic areas. Equipped with a 6-pin brass cylinder, the Sargent 28LC-7G05 can be master keyed, allowing for versatile access control. It includes two nickel silver keys and features a non-handed design for flexible installation. With a 5-year limited warranty and fire rating of up to 3 hours, this lock is a dependable choice for enhancing security in any building. Elevate your door hardware solutions with the Sargent 28LC-7G05 LL 04, a blend of reliability, style, and functionality.
Grade 2 Cylindrical Lever
Grade 2 Entrance/Office Cylindrical Lock, L Lever, Conventional Less Cylinder, Satin Brass Finish, Non-handed
A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability.
Sargent’s 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.
A key-in-lever lock designed for standard duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.
- For Doors: 1-3/4″ (44mm) Thick Door standard Specify 1- for 1-3/8″ (35mm) Thick Door
- Backset: 2-3/4″ (70mm) Backset standard. Specify 20- for 2-3/8″ (60mm) Backset
- CylindricalHousing: Steel, zinc dichromate finish
- Front: Wrought brass or stainless steel; Standard — 2-1/4″ (57mm) x 1-1/8″ (29mm), with 2-3/4″ (70mm) backset Specify 20- for 2-1/4″ (57mm) x 1″ (25mm), with 2-3/8″ (60mm) backset
- Strike: Wrought brass or stainless steel 2-3/4″ Curved Lip Strike standard 4-7/8″ Curved Lip (28-) and 2-1/4″ Full Lip (14-) Strikes Optional
- Hand: Non-handed — B, L, P lever designs Handed — G and Y Coastal Series lever designs
- Latch: Brass 1/2″ (13mm) throw
- Keys: Two, nickel silver
- Cylinder: Brass, 6-pin, LA keyway standard Can be master keyed or grand master keyed
- Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26 & 26D
- Door Prep: ANSI A115.2; Specify 20- for 160 Prep
Attributes
Ansi: F109
Ansi Function: F109 – Entry/Office
Baa Qualified: Yes
Base Material: Brass
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 8-1/4″
Box Height Fraction: 4-1/4″
Box Width Fraction: 6-7/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Less Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4″
Dust Box: None
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 05-Entrance or Office
Function Family: Entrance/Office
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 7/8″
Lever Knob: Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 1-1/8 x 2-1/4″
Manufacturer Function: Entrance/Office
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/4″
Origin: United States
Pack Height: 4.25″
Pack Height 2: 9″
Pack Length: 8.25″
Pack Length 2: 20.75″
Pack Qty: 1
Pack Volume: 241.05 in³
Pack Volume 2: 2801.25 in³
Pack Width: 6.88″
Pack Width 2: 15″
Pins: 6
Product Height: 4.25″
Product Length: 8.25″
Product Width: 6.88″
Projection: 2-1/2″
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8″ Rose Diameter
Roseescutcheon Dimensions: 3-3/8″
Screws: Wood/Machine Screws
Series: 7-Line Bored Lever Locks
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 193762
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
Resources
- 7 & 10 Line Bored Locks (30- prefix) Installation Instructions
- 7 & 10 Line Levers w/ Sargent Removable Core (63-) or Arrow, Best & Falcon Interchangeable Core Installation Instructions
- 7 Line Bored Lever Locks Catalog
- 7 Line Bored Lever Locks Template
- 7 Line Cylindrical Lock Installation Instructions
- 7-Line Bored Lever Locks Cut Sheet
- 7-Line Lever Lock Body (Manufactured after 1/2005) Illustrated Parts List
- Hurricane Resistant Bored Locks Sell Sheet
- SF Prefix Installation Instructions
- Sargent Bored Lock Brochure
