Description

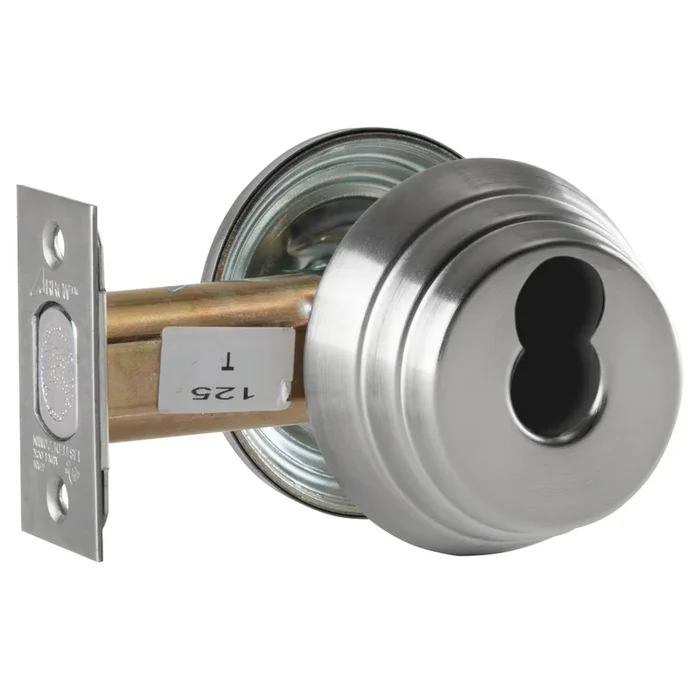

Arrow Lock E62 26D IC Grade 2 Deadbolt
Arrow E62 26D IC Grade 2 Deadbolt offers an exceptional blend of security and durability, making it an ideal choice for both commercial and residential applications. This Grade 2 double cylinder deadlock features a satin chrome finish and is prepared for a small format interchangeable core (SFIC), allowing for versatile locking options. Crafted with a robust two-piece housing and a free-spinning outer ring, the E62 is designed to resist wrenching and tampering. The steel deadbolt throw measures a solid 1 inch and includes a hardened steel pin insert, ensuring maximum security. With field-reversible handing, installation is straightforward, accommodating doors ranging from 1-3/8 inches to 1-3/4 inches thick. Included with the deadbolt are concealed mounting screws and two 1/4-inch steel thru-bolts for added strength. The standard strike pack is compatible with both metal and wood doors, enhancing its usability. Arrow has designed this product with convenience in mind, as it accepts various competitive keyways and cores, including Best™ and Falcon™ types. With its ANSI A156.5 certification and Underwriters Laboratories (UL) listing for A label doors, the Arrow E62 26D deadbolt is a reliable choice for those seeking top-tier locking solutions. This deadbolt not only prioritizes security but also offers ease of installation and versatility.
Grade 2 Deadbolt
Grade 2 Double Cylinder Deadlock, SFIC Prep Less Core, Satin Chrome Finish, Field Reversible
Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
Arrow E Series deadlocks are unsurpassed for value, quality and durability.
Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
Housing:Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
Thru-bolting:supplied with two 1/4″ (6.35 mm) steel thru-bolts.
Deadbolt:1″ (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.
Backset:2-3/8″ (60.32 mm), 2-3/4″ (69.85 mm).
Deadbolt fronts:
- 2-1/4″ (57.15 mm) x 1″ (25.40 mm) standard for 2-3/8″ (60.32 mm) backset,
- 2-1/4″ (57.15 mm) x 1-1/8″ (28.57 mm) standard for 2-3/4″ (69.85 mm) backset. Drive-in deadbolts are available.
Doors:1-3/8″ (34.925 mm) to 1-3/4″ (44.45 mm) thick standard.
Strikes:Supplied standard with #395 strike pack (metal and wood).
Handing:All functions are reversible.
Cylinder, Standard:Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41/42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys. Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers’ cylinders but cannot be ordered with the product.
Cylinder Options:Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.
Finish:US3, US4, US5A, US10, US10B, US10BE, US15, US26, US26D, BSP
E41/42 is available in US3, US15 and US26D.
- ANSI A156.5, Auxiliary Locks, Grade 2
- Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device
Attributes
Ansi: A156.5
Bolt Projection: 1″ Deadbolt
Box Depth Fraction: 4
Box Height Fraction: 3
Box Width Fraction: 4
Commercial Residential: Commercial
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Conventional Cylinder
Door Thickness: 1-3/8″ – 1-3/4″
Finish: 626/US26D
Finish Family: Matte Silver
Function: 62-Double Cylinder Deadbolt
Grade: Grade 2
Handing: Field Reversible
Installation: Commercial
Limited Warranty: 1 Year
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Function: E62
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/8″
Pack Height: 3″
Pack Height 2: 5″
Pack Length: 4″
Pack Length 2: 13″
Pack Qty: 1
Pack Volume: 48 in³
Pack Volume 2: 812.5 in³
Pack Width: 4″
Pack Width 2: 12.5″
Screws: Combination
Series: Arrow E Series Deadbolts
Ship Weight: 2 lbs.
Std Latch Backset Dim: 2-3/8″
Std Latch Number: 141
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4″
Std Strike Number: 395 (345 & 346)
Std Strike Type: Flat Strike
Std Strike Width: 1-1/8″
Strike Dimensions: 2-3/4″ x 1-1/8″
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 12
Resources
- Arrow E Series Deadbolts Cut Sheet
- E Series Cut Sheet
- Management Control Deadbolt Cut Sheet
- Occupancy Indicator Deadbolt Cut Sheet
