Description

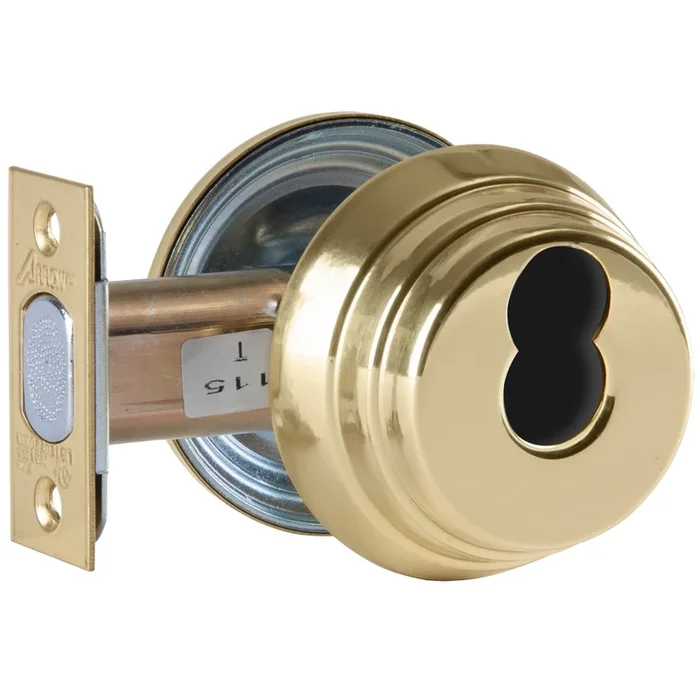

Arrow Lock E63 3 IC Grade 2 Deadbolt
Arrow E63 3 IC Grade 2 Deadbolt offers unparalleled security and durability for commercial applications. Designed as a Grade 2 Cylinder Only Deadlock, this deadbolt features a sleek bright brass finish and is field reversible, making it a versatile choice for various door types. The Arrow E Series is known for its exceptional value, and the E63 exemplifies this with its tamper-resistant rotating wrench-proof collar and solid steel construction. The deadbolt boasts a robust 1-inch throw, reinforced with a hardened steel pin insert for added security. It is compatible with standard backsets of 2-3/8 inches and 2-3/4 inches, ensuring easy installation on doors ranging from 1-3/8 inches to 1-3/4 inches thick. The E63 comes equipped with concealed mounting screws and two 1/4-inch steel thru-bolts to prevent unauthorized access. For added convenience, the lock accepts 6 or 7 pin interchangeable cores and can be supplied with various competitive keyways. Each unit is backed by a one-year limited warranty, ensuring peace of mind. With its ANSI A156.5 certification and UL listing for use on A label doors, the Arrow E63 3 IC Grade 2 Deadbolt stands out as a reliable choice for security professionals and discerning homeowners alike.
Grade 2 Deadbolt
Grade 2 Cylinder Only Deadlock, SFIC Prep Less Core, Bright Brass Finish, Field Reversible
Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
Arrow E Series deadlocks are unsurpassed for value, quality and durability.
Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
Housing:Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
Thru-bolting:supplied with two 1/4″ (6.35 mm) steel thru-bolts.
Deadbolt:1″ (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.
Backset:2-3/8″ (60.32 mm), 2-3/4″ (69.85 mm).
Deadbolt fronts:
- 2-1/4″ (57.15 mm) x 1″ (25.40 mm) standard for 2-3/8″ (60.32 mm) backset,
- 2-1/4″ (57.15 mm) x 1-1/8″ (28.57 mm) standard for 2-3/4″ (69.85 mm) backset. Drive-in deadbolts are available.
Doors:1-3/8″ (34.925 mm) to 1-3/4″ (44.45 mm) thick standard.
Strikes:Supplied standard with #395 strike pack (metal and wood).
Handing:All functions are reversible.
Cylinder, Standard:Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41/42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys. Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers’ cylinders but cannot be ordered with the product.
Cylinder Options:Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.
Finish:US3, US4, US5A, US10, US10B, US10BE, US15, US26, US26D, BSP
E41/42 is available in US3, US15 and US26D.
- ANSI A156.5, Auxiliary Locks, Grade 2
- Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device
Attributes
Ansi: A156.5
Bolt Projection: 1″ Deadbolt
Box Depth Fraction: 4
Box Height Fraction: 3
Box Width Fraction: 4
Commercial Residential: Commercial
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Conventional Cylinder
Door Thickness: 1-3/8″ – 1-3/4″
Finish: 605/US3
Finish Family: Polished Brass
Function: 63-Cylinder Only Deadbolt
Grade: Grade 2
Handing: Field Reversible
Installation: Commercial
Limited Warranty: 1 Year
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Function: E63
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/8″
Pack Height: 3″
Pack Height 2: 5″
Pack Length: 4″
Pack Length 2: 13″
Pack Qty: 1
Pack Volume: 48 in³
Pack Volume 2: 812.5 in³
Pack Width: 4″
Pack Width 2: 12.5″
Screws: Combination
Series: Arrow E Series Deadbolts
Ship Weight: 1.5 lbs.
Std Latch Backset Dim: 2-3/8″
Std Latch Number: 141
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4″
Std Strike Number: 395 (345 & 346)
Std Strike Type: Flat Strike
Std Strike Width: 1-1/8″
Strike Dimensions: 2-3/4″ x 1-1/8″
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 12
Resources
- Arrow E Series Deadbolts Cut Sheet
- E Series Cut Sheet
- Management Control Deadbolt Cut Sheet
- Occupancy Indicator Deadbolt Cut Sheet
