Description

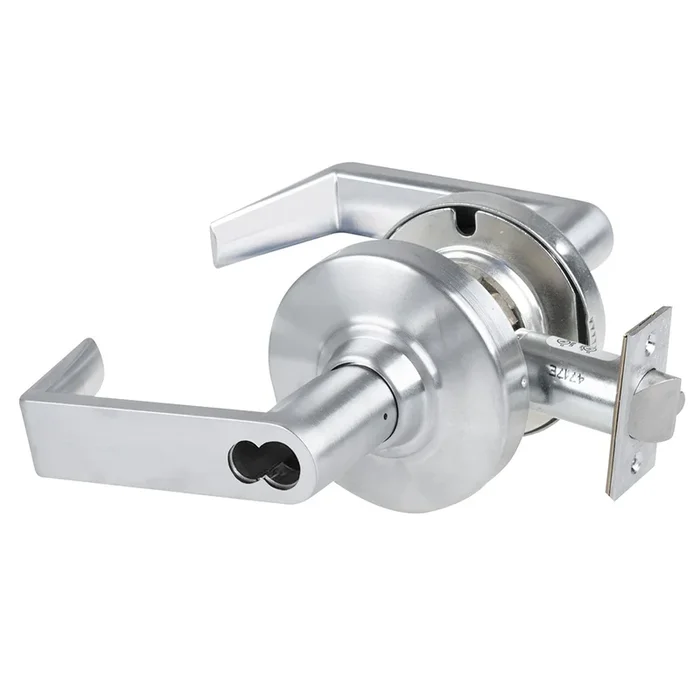

Schlage ALX53B RHO 626 14-028 Grade 2 Entrance Lock
Schlage ALX53B RHO 626 14-028 Grade 2 Entrance Lock offers a robust and reliable locking solution designed for commercial applications. This Grade 2 cylindrical lock is equipped with a field-selectable Vandlgard feature and showcases the elegant Rhodes lever design, providing both aesthetic appeal and functionality. The lock is finished in satin chrome, ensuring durability while maintaining a modern look. Engineered for ease of installation, the Schlage ALX53B accommodates door thicknesses ranging from 1-3/8″ to 1-3/4″, with a standard 3-3/4″ backset and a non-handed design that simplifies setup. Its square corner deadlatch offers enhanced security, while captured screws in the latch and strike minimize loose parts, contributing to a streamlined installation process. With a minimum operational lifespan of over 400,000 cycles, this lock is built to withstand heavy use, making it ideal for government, office, retail, and other commercial environments. The ALX series is also ADA compliant and UL/cUL listed, ensuring it meets necessary safety standards. Backed by a 10-year limited warranty, the Schlage ALX53B RHO 626 provides peace of mind with its proven reliability and innovative design.
Grade 2 Entrance Lock
Grade 2 Entrance Cylindrical Lock with Field Selectable Vandlgard, Rhodes Lever, SFIC Less Core, Satin Chrome Finish, Square Corner Deadlatch, 3-3/4″ Backset, Non-handed
Since the beginning nearly 100 years ago, the Schlage Lock Company has consistently delivered innovation and continuous improvement to the solutions youâÃÂÃÂÃÂâÃÂìÃÂÃÂÃÂìÃÂöâÃÂÃÂÃÂÃÂÃÂìÃÂââÃÂÃÂÃÂÃÂÃÂìÃÂèâÃÂÃÂÃÂÃÂÃÂìÃÂââÃÂÃÂÃÂâÃÂìÃÂÃÂÃÂìÃÂöâÃÂÃÂÃÂÃÂÃÂìÃÂáâÃÂÃÂÃÂÃÂÃÂìÃÂèâÃÂÃÂÃÂÃÂÃÂìÃÂââÃÂÃÂÃÂâÃÂìÃÂÃÂÃÂìÃÂöâÃÂÃÂÃÂÃÂÃÂìÃÂââÃÂÃÂÃÂÃÂÃÂìÃÂèâÃÂÃÂÃÂÃÂÃÂìÃÂáâÃÂÃÂÃÂâÃÂìÃÂÃÂÃÂìÃÂöâÃÂÃÂÃÂÃÂÃÂìÃÂáâÃÂÃÂÃÂÃÂÃÂìÃÂèâÃÂÃÂÃÂÃÂÃÂìÃÂÃÂâÃÂÃÂÃÂâÃÂìÃÂÃÂÃÂìÃÂöâÃÂÃÂÃÂÃÂÃÂìÃÂââÃÂÃÂÃÂÃÂÃÂìÃÂèâÃÂÃÂÃÂÃÂÃÂìÃÂáâÃÂÃÂÃÂâÃÂìÃÂÃÂÃÂìÃÂöâÃÂÃÂÃÂÃÂÃÂìÃÂáâÃÂÃÂÃÂÃÂÃÂìÃÂèâÃÂÃÂÃÂÃÂÃÂìÃÂÃÂ¥ve grown to trust. The Schlage ALX Series gives you the ability to use it as you would any other lock: ordered and delivered as a complete, configured product ready for installation. However, in its new modular design, ALX Series offers you the flexibility to utilize the separate components of chassis, function and lever packaged kits to create a lock to meet your needs on demand. Whether you are needing configured locks or change lock functionality, ALX Series can work for you. The ALX Series locksets are commonly used in Government, Office, Retail, and other commercial applications. The ALX Series has been certified Grade 2; exceeding 400,000 operating cycles without failure.
ALX gains X Factor qualities born from modular design making it a grade 2 lock unlike any other.
The Schlage ALX Series offers an unprecedented level of flexibility to every aspect of how you use it in your business. Based on a modular design and built on a single chassis, ALX also provides an advantage to all your grade 2 lock customers.
- Accommodates 1 3⁄8″ to 1 3⁄4″ door thickness with minimal chassis adjustment
- Captured screws in latch, strike and inside spring cage eliminate small, loose parts
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F109 – Entry/Office
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/8″ – 1-3/4″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 53-Entrance Lock
Function Family: Entrance
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1 In.
Lever Knob: Lever
Lever Knob Design Name: Rhodes
Leverknob Design: RHO – Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Entrance Lock
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
Origin: Mexico
Pack Height: 4.75″
Pack Length: 9.5″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25″
Pbs Options: ‘217581806,4540301
Pins: 6 to 7
Product Height: 4.5″
Product Length: 9.25″
Product Width: 8.13″
Projection: 2-15/16 In.
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 3-3/4″
Std Latch Number: 14-028
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Unit of Measure: Each
Resources
- ALX Configure Chart
- ALX Cylinders and Keyways Reference Guide
- ALX Key Systems, Cylinders and Keys Catalog
- ALX Series Cut Sheet
- ALX Series Lever Locks Cut Sheet
- ALX Series Product Catalog
- ALX Series Service Manual
- Schlage ALX Series Installation Instructions
- Schlage ALX Series Sell Sheet
- Von Duprin Finishes Chart
