Description

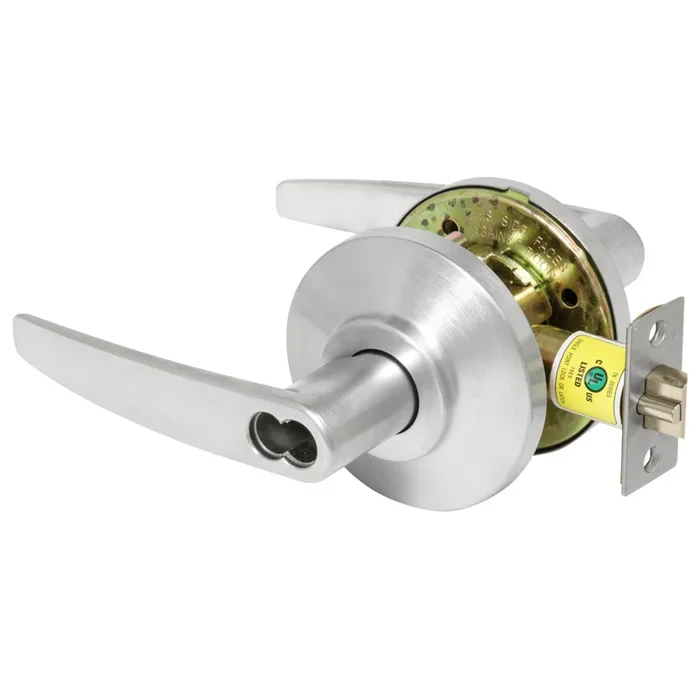

Best 7KC27AB16DS3626 Grade 2 Entry Lock Instructions
BEST 7KC27AB16DS3626 Grade 2 Entry Lock combines durability and versatility, making it an ideal choice for commercial applications. This Grade 2 cylindrical lock features a sleek satin chrome finish and a non-handed design, ensuring easy installation on both right and left-handed doors. Certified by Underwriters Laboratories for use on 3-hour fire-rated A label single swinging doors, this lock meets stringent safety and accessibility standards, including ADA compliance. The 7KC series is engineered for quick rekeying, accommodating BEST interchangeable cores for enhanced security and convenience. Its robust cylindrical chassis fits standard door preparations, while the 5 1/4″ long curved lever provides ease of use. The latch mechanism includes a 1/2″ throw deadlocking latch, with a choice of backsets to suit various door thicknesses from 1 3/8″ to 2″. Available in multiple finishes, including bright brass and satin bronze, the 7KC27AB16DS3626 is as aesthetically pleasing as it is functional. This lock’s internal components are crafted from zinc dichromated steel, ensuring longevity and reliability. With a limited 3-year warranty, the BEST 7KC27AB16DS3626 Grade 2 Entry Lock is a smart investment for any building professional seeking quality and performance.
Grade 2 Entry Lock
Grade 2 Entry Cylindrical Lock, 16 Lever, SFIC Less Core, Satin Chrome Finish, Non-handed
7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4′ x 8′ ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.
The 7KC Series has very versatile trims and has several finishes available too it your needs.
The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.
- Backset– 2 3/8″ for 72KC Series; 2 3/4″ for 73KC Series; 3 3/4″ for 74KC Series; 5″ for 75KC Series.
- Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
- Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
- Latch– 1/2″ throw deadlocking latch. Front: 2 1/4″ x 1 1/8″ x 5/32″ standard for 2 3/4″ backset; 2 1/4″ x 1″ x 5/32″ for 2 3/8″ backset.
- Lever– 5 1/4″ long handle with return. Projection on door 2 1/2″. Zinc base, plated to match finish.
- Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
- Mounting– 2 1/8″ diameter bore for lock housing, 1″ diameter for latch tube.
- Rose– D– 3 1/2″ diameter mounting screws concealed.
- Strike– STK (standard)– 2 3/4″ x 11/8″ with curved lip & box. (ANSI A115.2 for 1 3/8″ doors). S3– 4 7/8″ x 1 1/4″ with curved lip & box. (ANSI A115.2 for 1 3/4″ doors).
- Door thickness– 1 3/8″ to 2″ .
NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
Attributes
Manufacturer surcharge: 7.0%
Accessible: Yes
Ada Compliance: Yes
Ansi: F109
Ansi Function: F109 – Entry/Office
Base Material: Brass, Bronze
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 8-1/4″
Box Height Fraction: 4″
Box Width Fraction: 6-5/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: Taiwan
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/8″ to 2″
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: AB-Entrance
Function Family: Office
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1″
Lever Knob: Lever
Lever Knob Design Name: 16
Leverknob Design: 16 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 3 Year Warranty
Lock Face Size: 1″ x 2-1/4″
Manufacturer Function: Entry
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/8″
Origin: Taiwan
Pack Height: 4″
Pack Height 2: 8.75″
Pack Length: 8.25″
Pack Length 2: 20.5″
Pack Qty: 1
Pack Volume: 218.63 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63″
Pack Width 2: 12.5″
Pins: 6 to 7
Product Height: 4″
Product Length: 8.25″
Product Width: 6.63″
Projection: 2-1/2″
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2″ Rose Diameter
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: 7KC Series Grade 2 Cylindrical Lever Locks
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/8″
Std Latch Number: 7KC2
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: BHMA A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
