Description

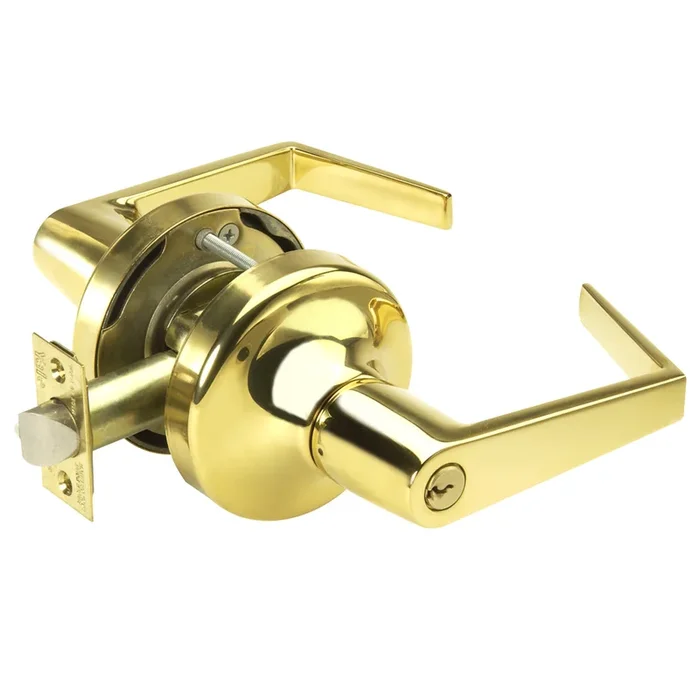

Yale AU5307LN 605 Grade 2 Entry/Office Lock
Yale AU5307LN 605 Grade 2 Entry/Office Lock is an exceptional solution for both commercial and residential applications. This Grade 2 cylindrical lockset features the elegant Augusta lever design and comes with a bright brass finish that enhances any doorway. Engineered for durability, it includes a vandal-resistant Free Wheeling lever mechanism, which ensures longevity in high-traffic areas. Installation is remarkably simple, thanks to its adjustable door thickness capability, accommodating doors from 1-3/4″ to 2″ thick, with special order options available. The through-bolting feature provides a secure fit, minimizing the risk of shaking and rattling. With 13 finish options and three lever designs, this lockset can seamlessly match various décor styles. Equipped with a conventional cylinder, the AU5307LN supports a wide range of Yale® 6-pin cylinder options, including standard and interchangeable core cylinders. It offers 19 mechanical functions and 4 electrified options, making it versatile for different locking needs. Backed by a lifetime warranty against lever sag and spring breakage, this lock guarantees reliability. With ANSI/BHMA certification and a robust construction, the Yale AU5307LN is an outstanding choice for your locking needs.
Grade 2 Entry/Office Lock
Grade 2 Entry Cylindrical Lock, Augusta Lever, Conventional Cylinder, Bright Brass Finish, Non-handed
This revolutionary Grade 2 lockset boasts design features such as a vandal resistant Free Wheeling lever mechanism and adjustable door thickness that makes installation a breeze. Through bolting gives the 5300LN a secure fit that resists shaking and rattling. With three lever designs and twelve different finishes, you have the ability to match any decor.
The 5300LN Series is a revolutionary Grade 2 cylindrical lockset.
The 5300LN Series features a vandal-resistant Free Wheeling lever mechanism. It also has through-bolting, which gives a secure fit that resists shaking and rattling.
• Free Wheeling lever mechanism for increased vandal resistance
• 13 finish options
• 3 lever designs
• 19 mechanical functions, 4 electrified
• Adjustable door thickness: (Patent #6,131,970) – Preset at factory for 1-3/4″ (44mm) to 2″ (51mm) – Special order available for 1-3/8″ (35mm), 2-1/4″ (57mm)
• 3-1/2″ rose covers ANSI/BHMA door prep A156.115 “Spider Cut Out”
• Through-bolts solidly through the door, providing greater stability
• Wide range of Yale® 6-pin cylinder options: – Standard, Interchangeable core, Security and Yale® KeyMark® protected keyway cylinders (see page 10)
• Competitive keying options: – Standard cylinders with Schlage® C and Sargent® LA keyways – Levers which accept interchangeable core cylinders by Best®, Schlage®, Medeco® and ASSA® – Levers which accept standard cylinders by Schlage®
• Lifetime warranty against lever sag and lever spring breakage
Attributes
Ansi: F109
Ansi Function: F109 – Entry/Office
Base Material: Brass
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 10″
Box Height Fraction: 3-3/4″
Box Width Fraction: 7-1/2″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4″ to 2″
Finish: 605/US3
Finish Family: Polished Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 07-Entry Lock
Function Family: Entrance/Office
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 7/8″
Lever Knob: Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU – Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 1-1/8″ x 2-1/4″
Manufacturer Function: Entry
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
Of Keys: 2
Origin: United States
Pack Height: 3.75″
Pack Length: 10″
Pack Qty: 1
Pack Volume: 281.25 in³
Pack Width: 7.5″
Pins: 6
Product Height: 3.75″
Product Length: 10″
Product Width: 7.5″
Projection: 3-1/2″
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2″ Rose Diameter
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: 5300LN Grade 2 Cylindrical Lever Locks
Ship Weight: 4.8 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 380AN
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Resources
- 5300LN Grade 2 Cylindrical Lever Locks Cut Sheet
- 5300LN Grade 2 or 4700LN Grade 1 Cylindrical Lever Locks Installation Instructions
- 5300LN Series Grade 2 Cylindrical Lever Locks Catalog
- Electrified Wiring Instructions 5390LN/5391LN and 4790LN/4791LN
