Description

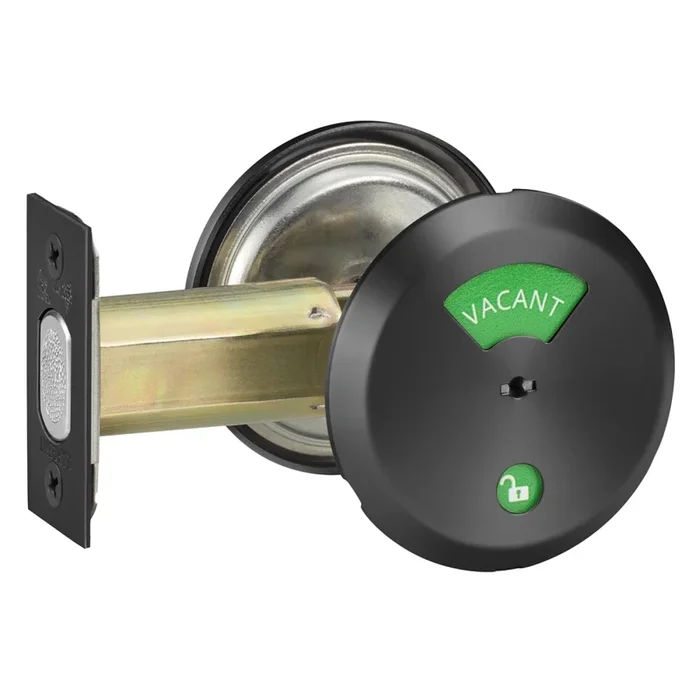

Sargent 20-468 BSP V21 Grade 2 Indicator Deadbolt
Sargent 20-468 BSP V21 Grade 2 Indicator Deadbolt combines security with user-friendly design, making it an ideal choice for both commercial and residential applications. This Grade 2 thumbturn x indicator deadbolt features a conventional cylinder and is equipped with an exterior indicator that displays VACANT/OCCUPIED status, while the interior indicator shows UNLOCKED/LOCKED in clear green and red colors. Designed for versatility, this deadbolt has a 2-3/8″ backset and accommodates doors with a thickness of 1-3/8″ to 1-3/4″. The lock’s non-handed design allows for easy field reversibility, ensuring a straightforward installation process. With a robust bolt projection of 1″, it also meets the ANSI A156.36 Certified Grade 2 standards, providing peace of mind regarding its reliability. The Sargent 20-468 comes with a sleek black suede powder coat finish that not only enhances its aesthetic appeal but also offers durability. It is fire-rated, providing additional safety for your space. Supplied with two cut keys and a limited one-year warranty, this deadbolt is a dependable choice for those seeking a reliable locking solution that balances functionality with style.
Grade 2 Indicator Deadbolt
Grade 2 Thumb Turn x Indicator Deadbolt, Conventional Cylinder, Exterior Indicator Displays VACANT/OCCUPIED, Interior Indicator Displays UNLOCKED/LOCKED, Green/Red, 2-3/8″ Backset, Wood/Metal Strike, Black Suede Powder Coat Finish, Non-Handed, Field Reversible
The Sargent 460 Grade 2 Deadbolts are available with 3 functions including double cylinders, single cylinder, and thumbturn x indicator.
Attributes
Ansi: A156.36 Certified Grade 2
Ansi Function: E01112
Application: Indicator with Text
Bolt Projection: 1″
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/8″ – 1-3/4″
Finish: BSP
Finish Family: Black
Fire Rated: Yes
Fire Rating: Yes
Function: 468-Thumb Turn x Indicator
Grade: Grade 2
Handing: Non-Handed
Installation: Commercial
Keys: Cut
Limited Warranty: 1 Year
Lock Face Size: 2-1/4″ x 1-1/8″
Of Keys: 2
Pack Qty: 1
Pins: 6
Series: 460 Series Grade 2 Deadbolts
Std Latch Backset Dim: 2-3/8″
Std Latch Type: Deadbolt
Std Strike Type: 2-3/8″ Backset, Wood/Metal Stk
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL 10C
Unit of Measure: Each
Resources
- 460 Series Template
- Sargent Auxiliary Locks Catalog
