Description

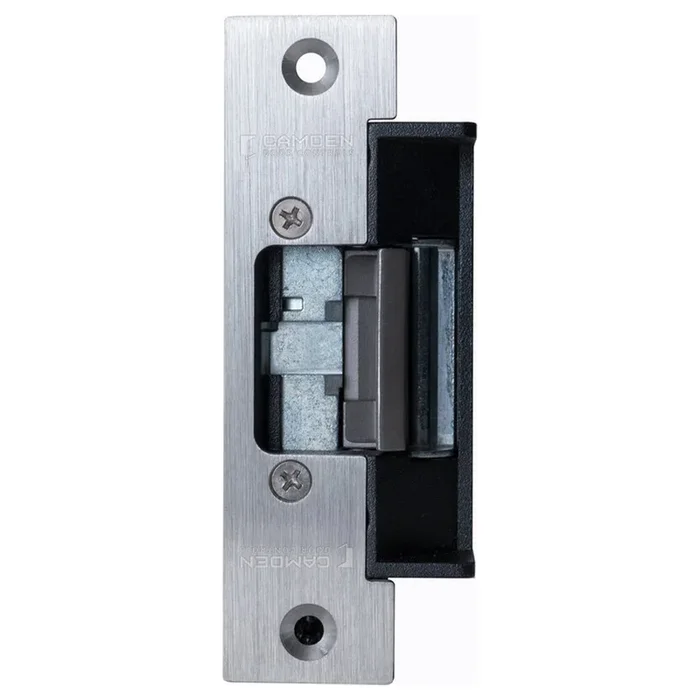

Camden CX-ED2079 Electric Strike
Camden’s new CX-ED2079 low profile ‘Universal’ grade 2 ANSI electric strike for cylindrical locksets provides exceptional value with 3 faceplates, and selectable 12/24V AC/DC voltage, fail safe/fail secure operation and horizontal adjustment of the strike body. Camden’s new CX-ED2071 low profile grade 2 ANSI electric strike for cylindrical locksets provides exceptional value for installations that require 8-16V AC/DC operation. CX-ED2071 includes 3 faceplates, selectable fail safe/fail secure operation and horizontal adjustment of the strike body.
Attributes
Alternate Codes: CX-ED2079, CXED2079
Amp Draw: 300mA/150mA
Base Material: Stainless Steel
Base Series: Camden Electric Strikes
Box Depth Fraction: 3-1/4″
Box Height Fraction: 2-1/4″
Box Width Fraction: 10-33/64″
Category: Access Control, Electric Strikes
Commercial Residential: Commercial
Country of Origin: Taiwan
Country of origin: Taiwan
Face Shape: Flat Face, Round Corners
Faceplate Depth: 1/8″
Faceplate Shape: Flat Face, Round Corners
Faceplate Size: 4-7/8″ x 1-1/4″
Finish: 630/US32D
Finish : Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
For Use With: Cylindrical Locks
Frame Depth: 1-7/32″
Function: Fail Safe/Fail Secure
Grade: Grade 1
Holding Force: 1000 LBS
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 12/24 VDC/AC
Origin: Taiwan
Pack Height: 2.25″
Pack Length: 3.25″
Pack Qty: 1
Pack Volume: 76.85 in³
Pack Width: 10.51″
Product Height: 3.38″
Product Length: 1.22″
Product Width: 1.88″
Series: Camden Maglocks and Strikes
Series Names: CX-ED2079 Series
Ship Weight: 1.25 lbs.
Subtype: Electric Strike
Type: Electric Strikes, Bolts, Magnets
Ul Listing: 294/1034
Unit of Measure: Each
Upc: 670454179395
Use With: Cylindrical Locks
Resources
- 2022 Camden Price Book
- 2022 Camden Price List
- 2023 Camden Price Book (effective 1.2023)
- CX-ED0010 Price Book Addendum
- CX-ED0010 Specification Sheet
- CX-EPD0009 Price Book Addendum
- CX-EPD0009 Specification Sheet
- Camden CX Series Magnetic Lock Mounting Accessories Guide
- Camden CX-MA0614-25 & CX-MA1214-25 Installation Instructions
- Spec Sheet
- Spec Sheet
- Video: CX-ED1079L/CX-ED2079 Electric Strike Installation
- Video: CX-ED1579L Electric Strike Installation
