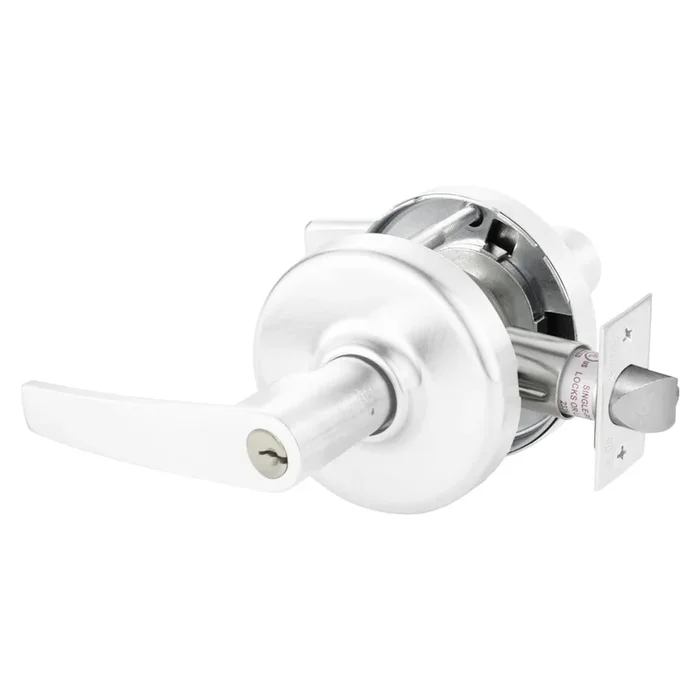

Corbin Russwin CL3861 AZD WSP Grade 2 Office Lock
Corbin Russwin CL3861 AZD WSP Grade 2 Office Lock offers a robust solution for commercial entry or office needs with its durable and stylish design. This Grade 2 standard-duty cylindrical lock features the elegant Armstrong lever and a conventional cylinder, all coated in a sophisticated white suede powder finish. Its non-handed design ensures easy installation on doors ranging from 1-3/8″ to 1-3/4″ thick, accommodating a variety of commercial settings. Certified with ANSI Grade 2 and a UL 3-hour fire rating, the CL3861 is engineered for safety and reliability, making it ideal for offices, multifamily housing, restaurants, and retail complexes. The Lever Release™ mechanism enhances vandal resistance, while solid cast levers provide both strength and aesthetic appeal. Independent lever return springs ensure a smooth operation, and through-bolts secure a solid attachment to the door. This lockset is designed to cover ANSI/DHI door prep A115.18 – 1994 “Spider Cut Out,” simplifying the installation process. With a limited 7-year warranty, you can trust the enduring quality of the Corbin Russwin CL3861 AZD WSP Grade 2 Office Lock, bringing peace of mind and professional elegance to your entrances.
Grade 2 Office Lock
Grade 2 Entry or Office Cylindrical Lock, Armstrong Lever, Conventional Cylinder, White Suede Powder Coat Finish, Non-handed
Grade 2 standard-duty lever lockset that provides a combination of value and performance.
The CL3800 Series is ideal for standard commercial applications such as interior offices, closets, multifamily housing, restaurants, and retail complexes.
- Lever Release™ for vandal resistance
- Solid cast levers
- ANSI Grade 2 certification
- UL 3-hour fire rating
- Independent lever return springs
- Through-bolts on door for solid attachment
- Covers ANSI/DHI door prep A115.18 – 1994 “Spider Cut Out”
Attributes
Ansi Function: F82 – Entry
Base Series: CL3800
Bolt Projection: 1/2″ Latch
Bore Hole Diameter: 2-1/8″
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/8″ – 1-3/4″
Finish: WSP
Finish Family: Clear
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 61-Entry or Office Lock
Function Family: Entrance
Grade: Grade 2
Handing: Not Handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Latch Bore Diameter: 1″
Lever Knob: Lever
Lever Knob Design Name: Armstrong
Leverknob Design: AZ – Armstrong Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 7 Years
Lock Face Size: 2-1/4″ x 1-1/8″
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/8″
Of Keys: 2
Origin: USA
Pack Height: 4.5″
Pack Height 2: 10.5″
Pack Length: 10″
Pack Length 2: 15.5″
Pack Qty: 1
Pack Volume: 337.5 in³
Pack Volume 2: 2359.88 in³
Pack Width: 7.5″
Pack Width 2: 14.5″
Pins: 6
Rose Escutcheon: Rose
Rose Number: D
Roseescutcheon Design: D Rose
Screws: Combination
Series: CL3800 Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4.1 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 600F10
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 217L13
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- CL3800 Series Grade 2 Cylindrical Lever Locks Cut Sheet
- CL3800 Series Installation Instructions
- CL3800 Series Sell Sheet
- CL3800 Series Template
- CL3850 & CL3870 Dummy Trim Template
- SC Series Curved Lip Box Strike Template
- SF114 & SFR114 Full Lip Strike Template
- SR118 Rabbeted Front & Strike Template
