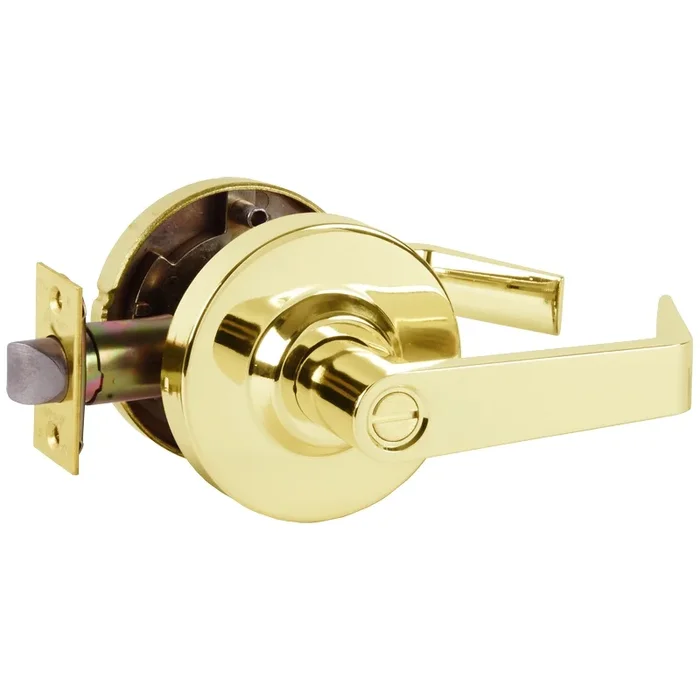

Arrow Lock MLX02-SR-03 Grade 2 Privacy Lock
Arrow Lock MLX02-SR-03 Grade 2 Privacy Lock offers a robust solution for both commercial and residential applications, ensuring security and ease of use. This Grade 2 cylindrical lock features a privacy function, making it ideal for areas requiring restricted access while maintaining a sleek aesthetic. Designed with a non-handed configuration, the lock accommodates various door installations with a standard bore diameter of 2-1/8 inches. The MLX02-SR-03 is equipped with a rigid Sierra lever and removable thru-bolts, facilitating quick installation and enhancing durability. With a stainless steel 1/2-inch throw latch and UL-listed guarded latchbolt, this lock guarantees reliable performance. The bright brass finish not only adds a touch of elegance but is also resistant to wear, ensuring longevity. Backed by a 10-year mechanical warranty, the MLX Series stands out for its freewheeling lever, which resists abuse and enhances overall functionality. Suitable for doors with a thickness ranging from 1-3/8 inches to 1-3/4 inches, this lock is perfect for various settings. The package includes two brass keys and meets ANSI A156.2 specifications, ensuring compliance with industry standards. Choose the Arrow Lock MLX02-SR-03 for a dependable and stylish locking solution.
Grade 2 Privacy Lock
Grade 2 Cylindrical Lock, Privacy Function, Non-keyed, Rigid Sierra Lever, 3-11/32″ Rose Diameter, Removable Thru-Bolts, Bright Brass Finish, Non-Handed
The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications.
The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty.
- Door Preparation – Requires standard 2-1/8″ (53.97mm) bore through door.
- Backset – 2-3/4″ (69.85mm)
- Door Thickness – Fits 1-3/8″ (34.93mm) to 1-3/4″ (44.45mm) doors standard.
- Latch – Stainless Steel 1/2″ (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front – 1-1/8″ x 2-1/4″ for 2-3/4″ (69.85mm) backset.
- Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4″ (120.65mm) in length. MLX Roses are wrought brass 3-11/32″ (84.8mm) diameter. Total projection from face of door is 2-17/32″ (64.5mm).
- Freewheeling Lever
- Warranty – Ten Year Warranty
- Handing – Non-handed
- Packaging – 6 per case
- Strike – 4-7/8″ ANSI (123.83mm)
- Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
- Keys – 2 brass keys
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2, Series 4000, Grade 2
Ansi Function: F76 – Privacy
Baa Qualified: No
Bore Hole Diameter: 2-1/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: South Korea
Cylinder Type: Non-keyed
Door Thickness: 1-3/8″ – 1-3/4″
Dust Box: None
Finish: 605/US3
Finish Family: Polished Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 02-Privacy
Grade: Grade 2
Handing: Non-Handed
Installation: Commercial
Latch Bore Diameter: 1″
Leverknob Design: SR – Rigid Sierra Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8″ x 2-1/4″
Origin: South Korea
Pack Height: 3.88″
Pack Length: 7.5″
Pack Qty: 1
Pack Volume: 199.8 in³
Pack Width: 6.88″
Product Height: 3.88″
Product Length: 8.25″
Product Width: 6.88″
Projection: 2-17/32″
Restrictions: None
Roseescutcheon Design: 3-11/32″ Rose Diameter
Screws: Combination
Series: MLX Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4.4 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8″
Std Strike Number: 306
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL 10C
Unit of Measure: Each
