Best 7KC30L15DS3612 Best Cylindrical Lock

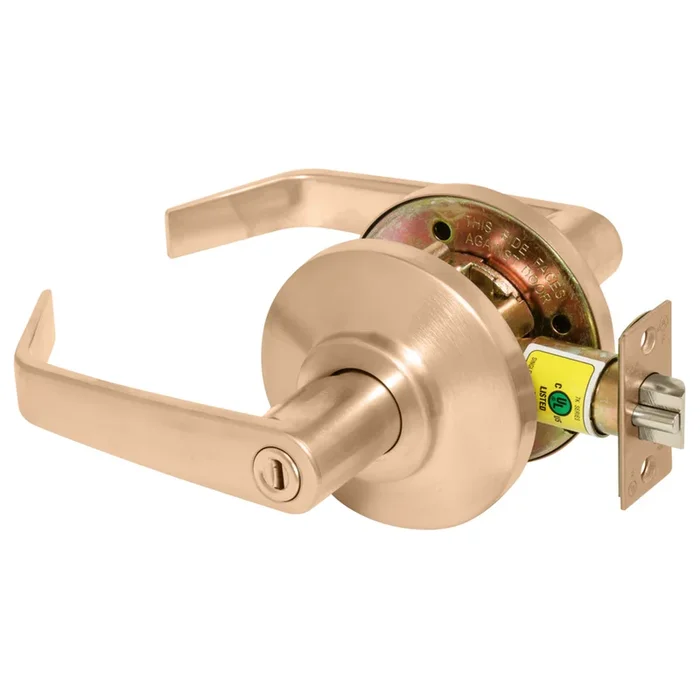

Stanley Best 7KC30L15DS3612 7K Series 2-3/4″ Backset Privacy 15 Lever and D Rose ANSI Strike Satin Bronze Finish
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- Cylindrical Chassis Fits Common Door Preparations
- Through-Bolt Mounting Studs Increase Torque Resistance
- Quick And Easy Rekeying With Best Interchangeable Cores
- Ansi A156.2 Grade 2
Attributes
Manufacturer surcharge: 7.0%
Accessible: Yes
Ada Compliance: Yes
Ansi: F76
Ansi Function: F76 – Privacy
Backset: 2-3/4″ Backset
Base Material: Bronze
Bolt Projection: 1/2″
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 8-1/4″
Box Height Fraction: 4″
Box Width Fraction: 6-5/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Taiwan
Country of origin: Taiwan
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: 15D
Door Thickness: 1-3/8 In. – 2 In.
Dust Box: Plastic
Finish: Satin Bronze
Finish : Satin Bronze Clear Coated
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: L-Privacy
Function Family: Privacy
Grade: Grade 2
Hand: Field Reversible
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1″
Latch Type: Guarded Latch
Lever Knob: Lever
Lever Knob Design: 15 – Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Year Warranty
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Privacy
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/8″
Origin: Taiwan
Pack Height: 4″
Pack Height 2: 8.75″
Pack Length: 8.25″
Pack Length 2: 20.5″
Pack Qty: 1
Pack Volume: 218.63 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63″
Pack Width 2: 12.5″
Product Height: 4″
Product Length: 8.25″
Product Width: 6.63″
Projection: 2-1/2″
Rose Escutcheon: Rose
Rose Escutcheon Design: D – Rose
Roseescutcheon Design: 3-1/2″ Rose Diameter
Roseescutcheon Dimensions: 3-1/2″
Screws: Combination
Series: 7KC Series
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 7KC3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike: S3 ANSI Strike
Strike Dimensions: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8 In.
Strike Type: ASA
Strike Width: 1-1/8 In.
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838194718
Resources
- 7KC Sell Sheet
- 7KC Series Grade 2 Cylindrical Lever Locks Cut Sheet
- 7KC Series Service Manual
- Cylindrical Installation Instructions
- Cylindrical Locks – 7KC Series Catalog
- Installation Instructions for 72KC-75KC Cylindrical Locks
- Installation Instructions for 72KC-75KC Key-in-Knob Cylinders
- Installation Instructions for 7K Cylindrical Locks
- Installation Instructions for 7K Dummy Trims
- Installation Instructions for 7KC 1DT 9K 1DT 2DT Dummy Trim Assemblies
