Description

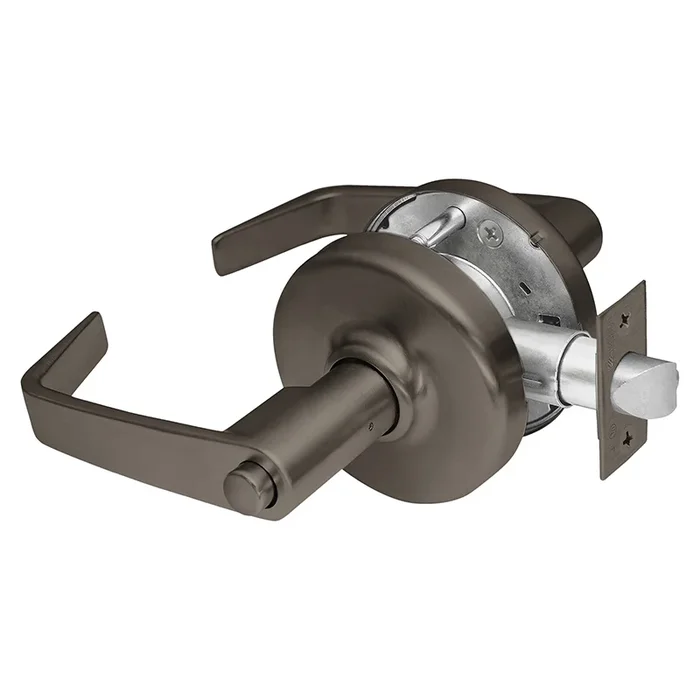

Corbin Russwin CL3820NZD613 Cylindrical Lock
Corbin CL3820NZD613 Zinc Newport Lever and D Rose Privacy Grade 2 Standard Duty Lever Lock Oil Rubbed Bronze Finish
Attributes
Ansi Function: F76 – Privacy
Backset: 2-3/4″ Backset
Base Series: CL3800
Bolt Projection: 1/2″ Latch
Bolt Protection: 1/2″
Bore Hole Diameter: 2-1/8″
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Non-keyed
Cylinders Present: Non-keyed
Design: Zinc Newport Lever and D Rose
Door Thickness: 1-3/8″ – 1-3/4″
Finish: Oil Rubbed Bronze
Finish : Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 20-Privacy Bedroom or Bathroom
Function Family: Privacy
Grade: Grade 2
Hand: Not Handed
Handing: Not Handed
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Bore Diameter: 1″
Latch Number: 600F11
Latch Type: Throw Off
Lever Knob: Lever
Lever Knob Design: NZ – Newport
Lever Knob Design Family: Return Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ – Newport Lever
Leverknob Design Family: Return Lever
Limited Warranty: 7 Years
Lock Face Size: 2-1/4″ x 1-1/8″
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/8″
Origin: USA
Pack Height: 4.5″
Pack Height 2: 10.5″
Pack Length: 10″
Pack Length 2: 15.5″
Pack Qty: 1
Pack Volume: 337.5 in³
Pack Volume 2: 2359.88 in³
Pack Width: 7.5″
Pack Width 2: 14.5″
Rose Escutcheon: Rose
Rose Escutcheon Design: D – Rose
Rose Number: D
Roseescutcheon Design: D Rose
Screws: Combination
Series: CL3800 Series
Ship Weight: 4.1 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 600F11
Std Latch Type: Throw Off
Std Strike Height: 4-7/8″
Std Strike Number: 217L13
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike: ANSI Curved Lip Strike
Strike Height: 4-7/8″
Strike Number: 217L13
Strike Type: ASA
Strike Width: 1-1/4″
Structure Function: 20
Structure Outside Finish: 613/US10B
Structure Outside Rose: D
Structure Outside Trim: NZ
Structure Series: CL38
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
