Description

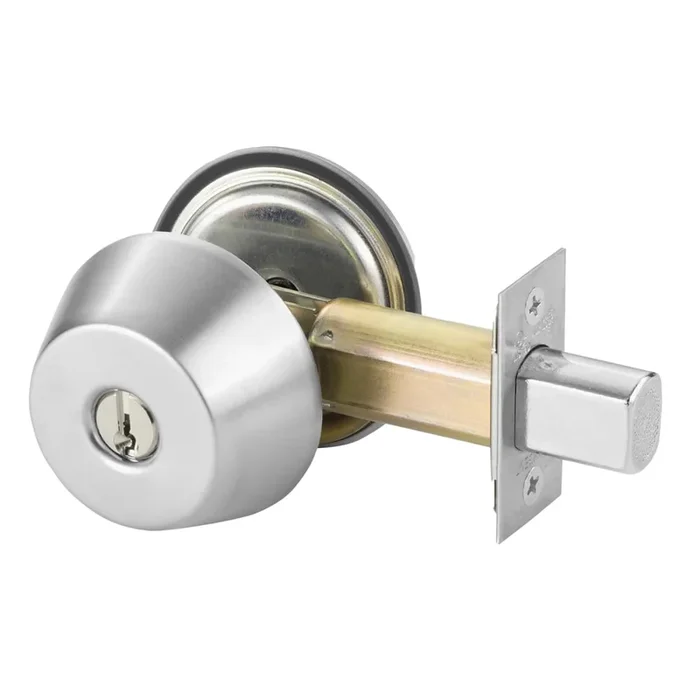

Sargent 465 26D V01 Grade 2 Single Cylinder Deadbolt
Sargent 465 26D V01 Grade 2 Single Cylinder Deadbolt offers a robust solution for both commercial and residential applications. Designed with a conventional cylinder, this Grade 2 deadbolt features an interior indicator that clearly displays whether the door is unlocked or locked with a straightforward green/red signaling system. The deadbolt fits standard door thicknesses ranging from 1-3/8″ to 1-3/4″ and includes a 2-3/4″ backset, making it a versatile choice for various installations. Constructed with a satin chrome finish (US26D), the Sargent 465 not only provides durability but also complements a variety of door designs. Its non-handed design allows for easy field reversibility, ensuring a hassle-free installation process. The deadbolt boasts a 1″ bolt projection and is equipped with six pins for enhanced security.Additionally, it meets ANSI A156.36 Certified Grade 2 standards and is UL 10C listed for fire safety, making it suitable for high-traffic environments. With a one-year limited warranty and two cut keys included, the Sargent 465 is designed to deliver peace of mind and reliable performance for years to come.
Grade 2 Single Cyl Deadbolt
Grade 2 Single Cylinder Deadbolt, Conventional Cylinder, Interior Indicator Displays UNLOCKED/LOCKED, Green/Red, 2-3/4″ Backset, Wood/Metal Strike, Satin Chrome Finish, Non-Handed, Field Reversible
The Sargent 460 Grade 2 Deadbolts are available with 3 functions including double cylinders, single cylinder, and thumbturn x indicator.
Attributes
Ansi: A156.36 Certified Grade 2
Ansi Function: E0152
Application: Indicator with Text
Bolt Projection: 1″
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/8″ – 1-3/4″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes
Function: 465-Single Cylinder
Grade: Grade 2
Handing: Non-Handed
Installation: Commercial
Keys: Cut
Limited Warranty: 1 Year
Lock Face Size: 2-1/4″ x 1-1/8″
Of Keys: 2
Pack Qty: 1
Pins: 6
Series: 460 Series Grade 2 Deadbolts
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Deadbolt
Std Strike Type: 2-3/4″ Backset, Wood/Metal Stk
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL 10C
Unit of Measure: Each
Resources
- 460 Series Template
- Sargent Auxiliary Locks Catalog
