Description

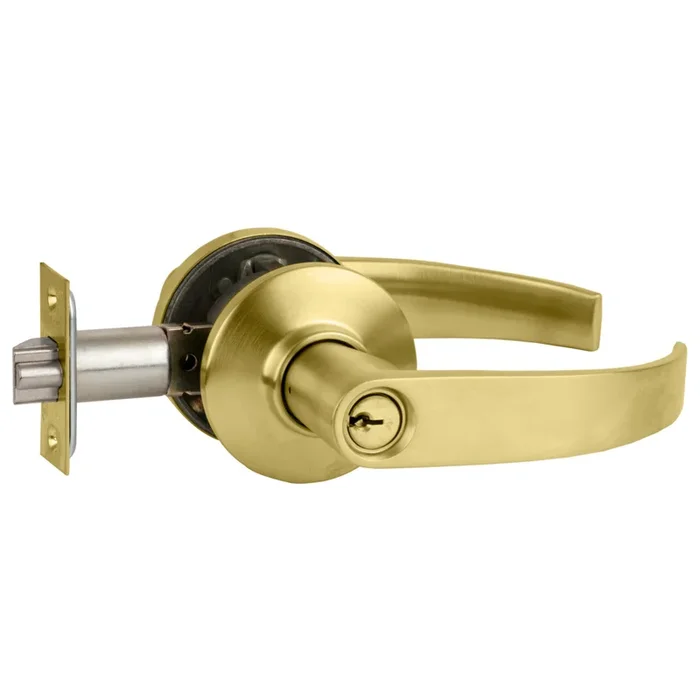

Schlage S80PD NEP 606 Lock Tubular Lock
Tubular Lever Lock, Storeroom, Grade 2, Neptune, Adjustable, 2-3/8″ or 2-3/4″ Backset, Satin Brass
- Storeroom, Outside Lever Fixed, Entrance by Key Only, Inside Lever Always Unlocked for Immediate Egress
- ANSI/BHMA Certified A156.2-2011
- 1-5/8″ to 2-1/8″ Door Range
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2, Series 4000, Grade 2
Ansi Function: F86 – Storeroom
Ansi Function : Storeroom
Baa Qualified: Yes
Backset: Adjustable Backset
Bolt Projection: 1/2″
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 9-1/2″
Box Height Fraction: 4-3/4″
Box Width Fraction: 8-1/4″
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Neptune
Door Thickness: 1-3/4 In.
Dust Box: Plastic
Finish: 606/US4
Finish : Satin Brass
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 80-Storeroom Lock
Function Family: Storeroom
Grade: Grade 2
Hand: Non-handed
Handing: Non-handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: S123
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bore Diameter: 7/8″
Latch Number: 16-203
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: NEP – Neptune
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: Neptune
Leverknob Design: NEP – Neptune Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Function: Storeroom Lock
Manufacturer Function : Outside knob fixed. Entrance by key only. Inside knob always unlocked.
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/8″
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Origin: Mexico
Pack Height: 4.75″
Pack Length: 9.5″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25″
Pbs Options: 4542184
Pins: 6
Projection: 2-1/2″
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: 2-1/2″ Rose Diameter
Rose Escutcheon Dimensions: 2-1/2″
Roseescutcheon Design: 2-1/2″ Rose Diameter
Roseescutcheon Dimensions: 2-9/16″
Screws: Wood/Metal Screws
Series: S Series Tubular Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/8″ – 2-3/4″
Std Latch Number: 16-203
Std Latch Type: Square Corner Deadlatch
Std Strike Height: 2-3/4″
Std Strike Number: 10-001
Std Strike Type: T-Strike
Std Strike Width: 1-1/8″
Strike: T Strike
Strike Dimensions: 1-1/8″ x 2-3/4″
Strike Height: 2-3/4 In.
Strike Number: 10-001
Strike Type: T-Square Corner
Strike Width: 1-1/8 In.
Structure Cylinder: P
Structure Function: 80
Structure Latch: D
Structure Latch Number: 16-203
Structure Outside Finish: 606
Structure Outside Trim: NEP
Structure Series: S
Structure Strike Number: 10-001
Subtype: Tubular Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Unit of Measure: Each
Resources
- 10-001, 10-013, 10-016, 10-019 Strikes, Metal Template
- 10-001, 10-013, 10-016, 10-019 Strikes, Metal Template
- 10-001, 10-013, 10-016, 10-019 Strikes, Wood Template
- 10-001, 10-013, 10-016, 10-019 Strikes, Wood Template
- 10-025, 10-072, 10-087 Strikes, Metal Door Jamb Template
- 10-025, 10-072, 10-087 Strikes, Metal Door Jamb Template
- 10-025, 10-072, 10-087 Strikes, Wood Door Jamb Template
- 10-025, 10-072, 10-087 Strikes, Wood Door Jamb Template
- 10-027 Strike, Wood Door Jamb Template
- 10-027 Strike, Wood Door Jamb Template
- 2019 Schlage Multi-Family Price Book
- 2019 Schlage Price Book
- 2020 Schlage Multi-Family Price Book
- 2020 Schlage Price Book
- 2020 Schlage Price Book
- 2022 Schlage Commercial Price Book
- 2022 Schlage Commercial Price Book
- AL Series Product Catalog
- ALX Series Product Catalog
- B Series Product Catalog
- B250 Series Product Catalog
- HL Series Product Catalog
- L Series Product Catalog
- ND Series Product Catalog
- S Series Installation Guide
- S Series Installation Guide
- S Series Tubular Lever Locks Cut Sheet
- S Series and S200 Series Product Catalog
- Schlage Finishes Chart
- Schlage S Series Catalog
- Von Duprin Finishes Chart
