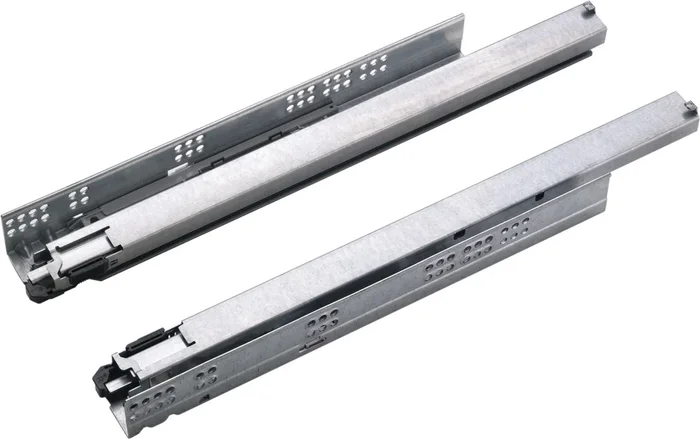

Hafele 433.19.541 Grass Dynapro 19″ Full Extension Slide, 100 lbs Capacity
Hafele 433.19.541 Grass Dynapro 19 Full Extension Slide offers a seamless blend of functionality and durability, designed to support drawer systems with a load capacity of up to 100 lbs. This 3D version features a 15-inch length, allowing for precise height, side, tilt, and depth adjustments, ensuring a perfect fit in various cabinet applications. The integrated soft close liquid damping mechanism guarantees a sleek and smooth closing action, promoting a quiet environment in any space. Engineered for performance, the fully synchronized runner provides silent operation, enhancing user experience while meeting or exceeding BHMA Grade 1 testing requirements. Continuous self-locking of the drawer upon closure adds an extra layer of security and ease of use. Installation is straightforward, requiring a minimum installation depth of 15 7/8 to 17 9/16 inches. The robust zinc-plated steel construction ensures longevity and resilience, making it ideal for both residential and commercial settings. Please note that front locking devices must be ordered separately, and the 3D version requires an R/L rear adjustment adapter for optimal performance. Experience effortless drawer functionality with the Hafele Grass Dynapro 19 Full Extension Slide, a perfect choice for discerning builders and homeowners alike.
Grass – Full Extension Slide, Dynapro 19, 100 lbs
3D adjustment, 15″ length
Integrated soft close liquid damping provides sleek, smooth closing Fully synchronized runner for the ultimate in smooth silent operation Continuous self-locking of drawer when pushed onto the drawer Slide-on mounting Meets or exceeds BHMA Grade 1 testing requirements 3-D version adds tilt adjustment +4 mm (11/64″)
All items require R/L front locking device; 3-D version also requires R/L rear adjustment adapter.
Attributes
Adjustment facility: Height adjustment + 3.5 mm Side adjustment ± 1.5 mm Tilt adjustment + 4 mm Depth adjustment + 3 mm
Color/finish: Zinc-plated
Comfort functions opening/closing: Soft close fluid damped
Drawer length: 15″
Features: 3-D
Installation depth min. (inches): 15 7/8 – 17 9/16″
Load bearing capacity: 45.00 kg
Material: Steel
Model series: Grass Dynapro – 19
Order reference: Front locking devices must be ordered separately and 3-D version also requires R/L rear adjustment adapter
Version: 3-D
Resources
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 8.66
