Description

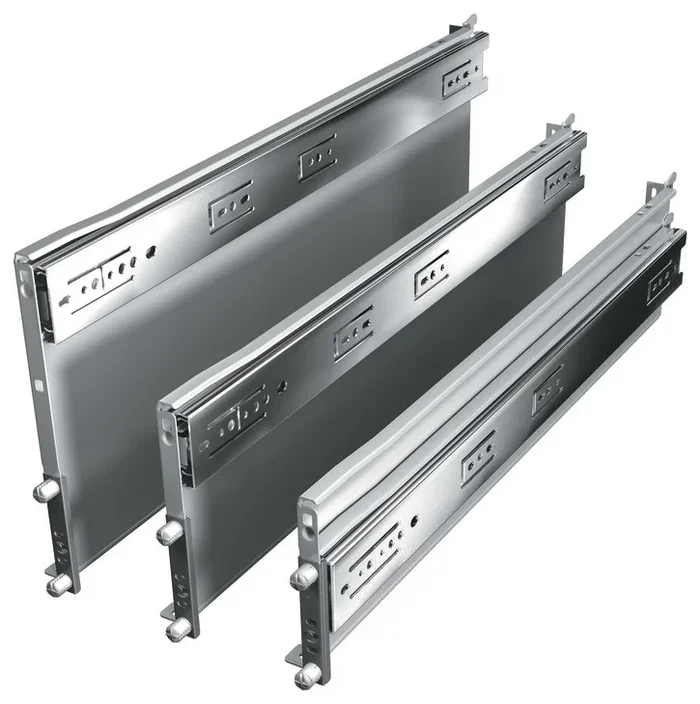

Hafele 553.31.813 Zbox Drawer Side Runner, 3-3/8″ Height
Hafele 553.31.813 Drawer Side Runner, Zbox, 3-3/8″ Height offers a seamless solution for enhancing drawer functionality in both frameless and face-framed cabinets. With a length of 400mm, this integrated side mount ball bearing telescopic slide ensures full extension, allowing for maximum accessibility to drawer contents. Crafted from durable steel, the sides and slides feature an epoxy powder-coated white finish, while the zinc-coated slides provide added durability. Designed to meet and exceed ANSI/BHMA 156.9 Grade 1 testing standards, the Hafele Zbox is built for reliability and strength, boasting an impressive load-bearing capacity of 45 kg. The easy lever disconnect feature simplifies drawer removal, making maintenance and organization straightforward. Each box contains five complete sets, including left and right drawer members and cabinet members, ensuring that you have everything needed for installation. Whether you’re a building professional or a knowledgeable homeowner, you can appreciate the quality and performance that Hafele delivers with this drawer side runner. With the option to ship via UPS and its versatile installation capabilities, the Hafele 553.31.813 is an excellent choice for any cabinetry project.
Drawer side runner, Zbox, 3-3/8″ Height
Grass, length: 400mm
Integrated side mount ball bearing telescopic full extension drawer slide and metal drawer side Easy lever disconnect Made in USA Meets & exceeds ANSI/BHMA 156.9 Grade 1 testing
Attributes
Color/finish: Sides: Epoxy powder coated whiteSlides: Zinc coated white
Height (inch): 3 3/8″
Installation: Frameless or face framed mounting
Length (inch): 15 3/4″
Load bearing capacity: 45.00 kg
Material: Sides & Slides: Steel
Order reference: If face frame, please order 553.31.990 (Rear Socket or Face Frame Rear bracket)
Supplied with: All boxes are 5 sets. A set includes: Left & right DMs (drawer member) Left & right CMs (cabinet member) SPQs are non-breakable
Resources
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 8.50
