Description

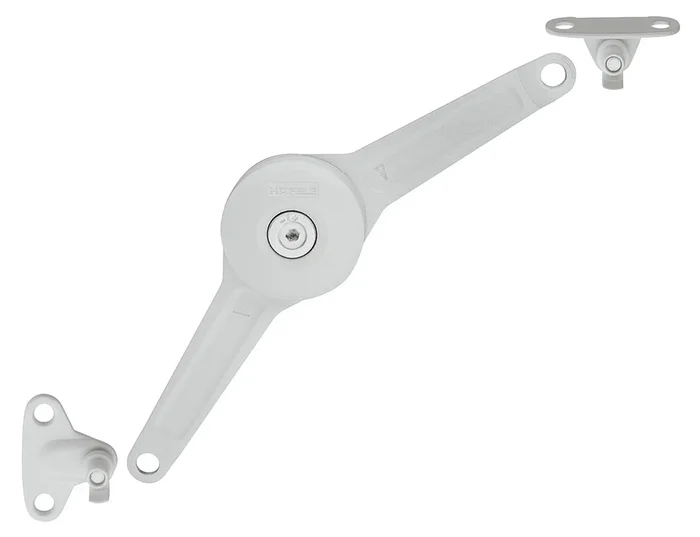

Hafele 373.66.264 Hafele Duo Standard Lid/Flap Stay Complete Set
Hafele 373.66.264 Lid Stay/Flap Stay, Hafele Duo Standard, Complete set offers innovative functionality for wood or aluminum framed doors, enhancing both convenience and design. This versatile fitting can be used as either a lid or flap stay, allowing for seamless application across various cabinet styles. With a sleek white finish, it not only blends well with contemporary interiors but also supports a clean aesthetic. Designed with a wear-resistant friction coupling, it features a large adjusting range that ensures reliable performance. The adjustment facility allows for precise holding power, while the unique overshear adjustment transforms the lid stay into a flap stay, providing flexible usage options. This fitting accommodates cabinet heights from 200 to 500 mm and requires a minimum cabinet width of 45 mm, making it suitable for a variety of installations. Installation is straightforward with euro screws, and the set includes all necessary components: the lid stay, mounting bracket for the cabinet, and screw mount bracket for the flap. For optimal performance, it is advised to use two fittings when utilized as a flap stay and to consider the weight of the handles. With an opening angle of 75 to 110 degrees, this lid stay ensures easy access while maintaining stability.
Lid Stay/Flap Stay, Hafele Duo Standard, Complete set
For wood or aluminum framed doors, White, for euro screws
Can be used as a lid or flap stay Less space is required inside the cabinet Wear-resistant friction coupling with large adjusting range
Adjusting the arms (overshear) turns the lid stay into a flap stay
Important Mounting location dimensions are critical for this fitting to perform properly
Attributes
Adjustment facility: holding power adjustment
Area of application: For wood or aluminum framed doors
Color/finish: White
Edge distance: 37.00 mm
Flap type: one-piece
For cabinet height: 200 – 500 mm
For cabinet width: ≥45 mm
For lid weight: ≤12 kgnote sample measurements table
Installation: Euro screws
Installation reference: Always use two fittings when used as flap stay and include weight of handles
Lid material: Wood, Aluminum frame
Material: Steel
Mounting: right and left hand use
Opening angle: 75 – 110 °
Supplied with: Lid stay Mounting bracket for cabinet Screw mount bracket for flap
Version: Complete set
Resources
- CAD data
- Certificate
- Door Weight Calculation Chart
- Duo Standard Mounting Instructions
- Installation instructions
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.139
- Technical data sheet
