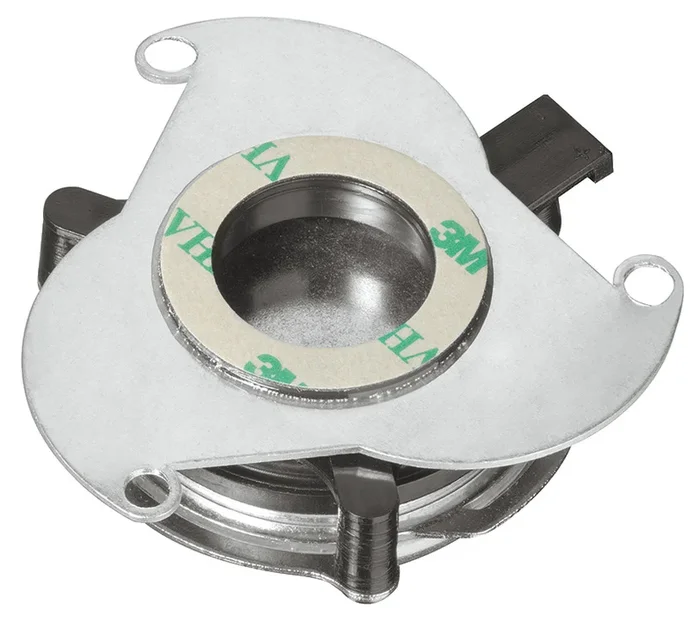

Hafele 822.65.039 12V Audio System Exciter for 420 Sound System
Hafele 822.65.039 Exciter for 12 V audio system and 420 sound system transforms ordinary boards or cabinets into dynamic sound carriers, enhancing any space with immersive audio. Designed for concealed installation, this compact exciter measures 2 9/16 x 7/8 inches (65 x 22 mm) and integrates seamlessly into furniture, tables, counters, mirrors, and even wall and ceiling surfaces. Its versatility allows installation on various materials, including glass, acrylic glass, chipboard, and mineral composite boards. Equipped with a 15 W audio power output, this exciter connects to the 12 V plug system, making it compatible with the Hafele 12 V audio system and the 420 E sound system. The supplied lead measures 2 meters (78 3/4 inches), providing ample length for flexible installation. Additionally, installation options include glue fixing or using screws, ensuring a secure fit. With a nominal output of 4 W, the Hafele 822.65.039 exciter delivers clear sound quality while maintaining a low-profile appearance. For expanded functionality, remember to order the extension lead 833.73.766 separately. Experience the perfect blend of style and sound with this innovative audio solution from Hafele.
Exciter for 12 V audio system and 420 sound system
For concealed installation,(2 9/16 x 7/8″) 65 x 22 mm, exciter lead, 12 V plug system
Transforms boards or cabinets into sound carriers
Can be combined with the devices of the 12 V audio system and 420 E sound system. The power supply of the audio devices is provided by the 12 V plug system, which can be extended with the appropriate Loox extension leads.
Attributes
Area of application: Installation in furniture, tables and counters, mirrors, wall and ceiling surfaces. Can be installed on glass and mirror glass (3–6 mm each), acrylic glass (3 mm), chipboard (10–20 mm) and mineral composite boards
Audio power: 15.00 W
Cable length: 1,000.00 mm
Diameter (inch): 2 9/16″
Exciter dim. (Ø x H): 65 x 22 mm
Installation: for glue fixing, With screws
Low voltage plug: Loox 2-pin 12 V
Module type: Exciter 12 V audio plug system
Mounting location: Concealed
Nominal output: 4.00 W
Order reference: Please order extension lead 833.73.766 for exciter separately.
Suitable for: 420 E Sound system
Supplied with: Supplied with 2 m (78 3/4″) lead
Width (inch): 7/8″
Resources
- CAD data
- Installation instructions for 420 E sound system
