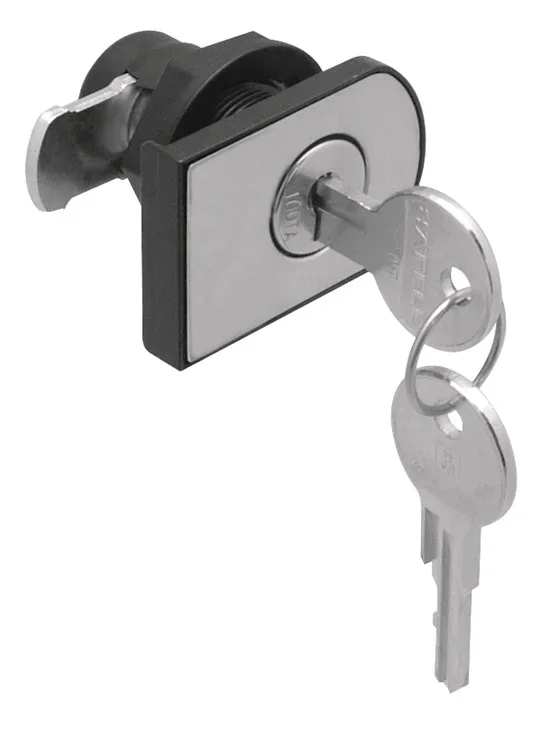

Hafele 233.17.730 Horizontal Glass Door Lock Installation Guide
Hafele 233.17.730 Glass Door Lock, Horizontal Installation offers a sophisticated security solution tailored for glass doors. Designed with a polished nickel finish, this lock not only enhances the aesthetics of your installation but also ensures durability and reliability. The Timberline modular removable core locking system features a 5-pin tumbler mechanism, providing an added layer of security that is essential for both residential and commercial applications. This lock is engineered to accommodate glass thicknesses up to 10 mm (3/8″), making it versatile for various glass door setups. A unique two-piece design allows for quick and easy mounting, eliminating the need for complex assembly. The outer body is constructed from high-quality nylon, while the faceplate is brass-plated for a refined appearance. A neoprene gasket on the front surface ensures a cushioned fit, preventing any damage to the glass, while the plastic tightening screw on the back surface allows for secure installation without tools. With a reversible closure travel of 90°, the Hafele 233.17.730 lock is adaptable to different door configurations, making it a practical choice for any building professional or knowledgeable homeowner seeking quality and performance in their hardware solutions.
Glass Door Lock, Horizontal Installation
Timberline modular removable core locking system, Polished nickel
Small high quality appearance Fully cushioned to avoid glass damage – Neoprene gasket on front surface – Plastic tightening screw on back surface
Attributes
Closure travel: 90° (reversible)
Color/finish: Polished nickel
For glass thickness: ≤10 mm
For glass thickness (inches): 3/8″
For max. glass thickness (inches): 3/8″
Installation: Unique retainer nut allows secure tightening by hand Two piece design for quick mounting – user does not need to assemble cam
Material: Outer body: Nylon Face plate: Brass-plated Finish cap: Plastic Lever: Steel
Model: CB-301
Type of locking: with 5 pin tumblers
Version: Neoprene gasket on front surface, Plastic washer on back surface
Resources
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 10.10
