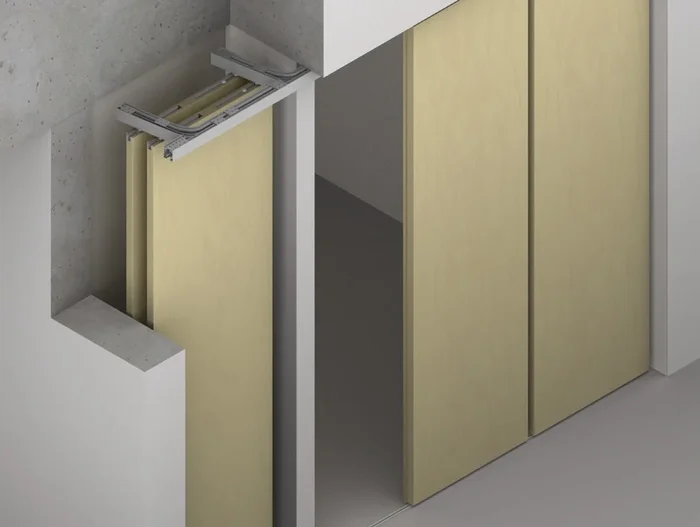

Hafele 943.30.005 Hawa Aperto 60/H Sliding Door Hardware Set
Hafele 943.30.005 Sliding Door Hardware, Hawa Aperto 60/H, set provides an innovative solution for up to eight stackable wooden sliding doors and one hinged door, perfect for both commercial and public spaces. Designed for ceiling installation, this modular running track system supports door weights up to 60 kg and heights up to 2,600 mm, accommodating a range of applications. Experience the benefits of a height-adjustable design that ensures smooth, silent operation, even in curves. The system allows for installations without a bottom guide channel, enhancing flexibility in your space. A single bolt lock secures the entire installation, while the center stop features an adjustable retention spring catch for added convenience. This system supports door widths from 550 to 1,500 mm and thicknesses between 35 to 50 mm. With the ability to park doors at either 90º or parallel to the sliding axis, it offers versatile solutions for room separation and visual privacy. The anodized silver finish not only provides durability but also adds a sleek look to any environment. Whether you’re designing a modern office or a stylish retail space, the Hafele Hawa Aperto 60/H ensures functionality meets contemporary design.
Sliding Door Hardware, Hawa Aperto 60/H, set
for up to 8 stackable wooden sliding doors/1 hinged door, ceiling installation, for door weights up to 60 kg, for door heights up to 2,600 mm, door type G
Modular running track system for room dividers and screensSuspension with support profileHeight adjustable sliding door leavesExtremely light and silent running in curvesA single lock secures the entire installationInstallations without a bottom guide channel are possibleCenter stop with adjustable retention spring catchStandard parking area sets accommodate up to 9 door panelsParking at 90º or parallel to the sliding axis
Attributes
Adjustment facility: Height adjustment facility: -3 – 3 mm, Vertically: (+/- 1/8″) +/- 3 mm
Area of application: Suitable for flexible room partitioning or screens with up to 8 sliding doors and 1 access door in commercial and public buildings locking of the system with one lock
Controller installation options: Ceiling installation
Door weight max.: 130 lbs.
Features: For system without guide track
For door height: ≤2,600 mm
For door material: wood
For door thickness: 35 – 50 mm
For door thickness max.: 2″
For door thickness min.: 1 1/2″
For door weight: ≤60 kg
For door width: 550 – 1,500 mm
Lock type: Single bolt lock with square/hexagonal nut
Material/finish: Silver colored, anodized
Max. door weight: 132.00 lb
Note on door width: Parking area 90°: 550–950 mm, parallel parking area: 550–1500 mm
Number of doors per system max.: ≤8
Order reference: Several individual elements must be ordered in order to achieve a functional system with the Aperto 60/H sliding door fitting. The following must be determined before ordering: > Type of guidance (with or without bottom guide track) > Hinged door (suitable for parking area, for use with or without bottom track) > Type of parking area (parallel or 90° to sliding direction) > Single bolt lock with square/hexagonal nut or profile cylinder > Width of system, determines number of individual elements The required individual elements can be determined from these specifications: > Door types (A – I) > Stacking (parallel or 90°) 8 different system types can be created by combining the individual elements, see system types. To order a system type, the individual elements that are listed as sets must be selected. The following must also be ordered: > the top running tracks > the bottom guide tracks (optional) > the internal track covering for the parking area (optional) > Quantity and length of sealing and rubber profiles (optional) > Quantity, length and type of Hawa edge protection profile (optional)
Running system: Concealed in track
Set type: Set for sliding doors, Set for door type G
Suitable for: Flexible room or visual separation, Room-high solutions, Locking of the installation with a lock
Version: Door can be optionally stacked parallel or 90° to the running direction in the open position Partial sets for sliding doors, hinged doors and parking areas with guide track, optionally without guide track with low load System flush in closed position light and quiet curve running
Resources
- Aperto 60/H 90° installation instructions
- Aperto 60/H parallel installation instructions
- CAD data
- HAWA Aperto 60/H
- Installation instructions
- Installation instructions
- Installation instructions
- Manufacturer information
- TCH_Architectural_Hardware_ 2022 | Page 1.208
