Description

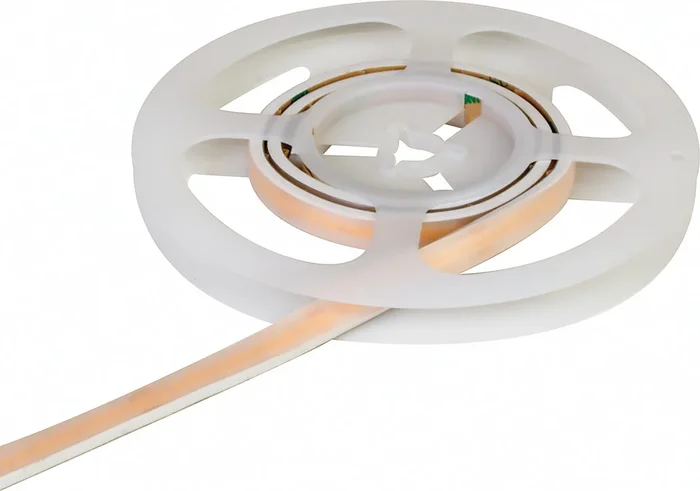

Hafele 833.02.167 LED 1203 COB Tunable White Strip, 2-Wire, Medium Intensity, 12V
Hafele 833.02.167 LED 1203 COB Complete Strip offers a versatile lighting solution with tunable white color temperatures ranging from 2700 to 5000K. Measuring 10 mm in width and extending to 6 meters (236 7/16 inches) in length, this strip is designed for seamless integration into closet storage spaces and various applications. Its encasement in a silicone sleeve not only enhances durability but also eliminates the need for additional profiles, ensuring a clean and modern look. This LED strip guarantees uniform light output with invisible LED dots, providing a visually pleasing illumination experience. The installation is straightforward, suitable for both recess and surface mounting, and the IP67 rating allows for use in almost any environment. Easily customizable, the strip can be shortened every 25 mm (1 inch) and can be divided into two sections, making it adaptable to your specific needs. Control of the color temperature is facilitated through various Hafele Connect options, including a 4-way Connect Mesh distributor or a manual color temperature control distributor-sold separately. Each roll comes with pre-attached leads for quick setup. With a luminous efficacy of 82–90 lm/W and a wattage of 3.00 W/m, the Hafele 833.02.167 ensures efficient and effective lighting that enhances any space.
LED 1203 COB Complete Strip, Tunable White 2-Wire, Medium Intensity, 12V
10 mm width (3/8″), 6 m (236 7/16″) length
Tunable color temperature (2700–5000K) Uniform light output: LED dots are not visible Encased in a silicone sleeve eliminating the need for a profile
Suitable for use within closet storage spaces
Color temperature can be controlled via 4-way Connect Mesh distributor (850.00.912) paired with any Häfele Connect mesh wireless switch; a 4-way press-to-pair distributor (850.00.810) paired with a Kinetic double rocker wall switch; or with a 6-way distributor with manual color temperature control (833.95.894). Please order separately. Can be shortened every 25 mm (1″). A 2 m (78 3/4″) lead cable (5.0A/18 AWG) is soldered on each end of the roll. Strip can be divided into 2 sections. 10 x 3.8 mm (3/8″ x 5/32″) dado leaves a 1.2 mm crown when installed. Silicone compresses when a shelf is pushed against it.
Attributes
Color temperature: 2700 – 5,000 K
Degree of protection: IP67
Height (inch): 5 mm (3/16″)
Installation: For recess mounting, For surface mounting
Installation reference: IP67 rating allows strip to be used in almost any application
Length (inch): 6 m (236 7/16″)
Light color: Warm white to cool white
Luminous efficacy: 82 – 90 lm/W
Luminous flux/m: 246 – 270 lm
Nominal voltage: 12.00 V
Order reference: Max. strip length (visual): 5 m (196 13/16″) Maximum visual strip length applies for an imperceptible drop in luminous flux of max. 30%
Supplied with: 1 roll Each roll is supplied with leads pre-attached to each end
Wattage/m: 3.00 W
Width (inch): 10 mm (3/8″)
Resources
- Certificate of Compliance_E489945_Vol1-Sec4-202401103
- Hafele_Lighting_ 2024 | Page 63
- Hafele_Lighting_ 2024 | Page 67
- Technical data sheet
