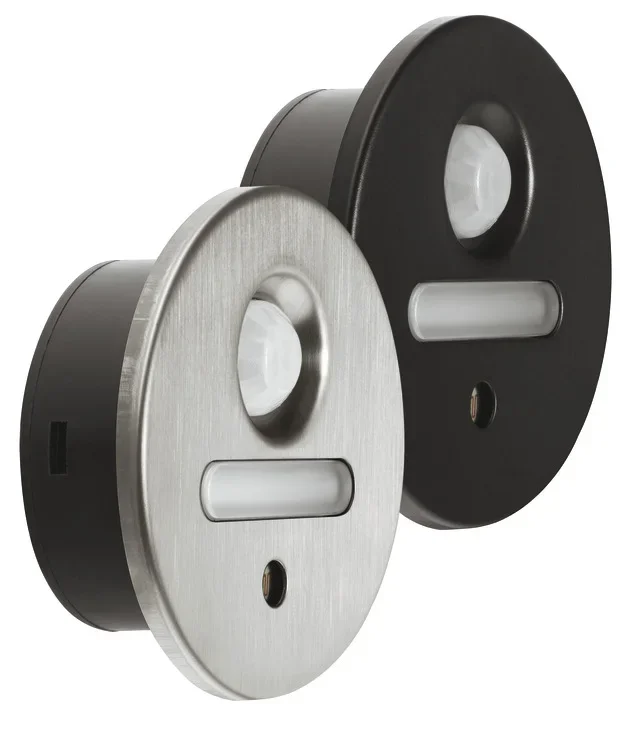

Hafele 833.73.111 Hafele Loox LED 2028 Sensor-Controlled Toe Kick Light, 12V
Hafele 833.73.111 Toe Kick Light is a sleek, sensor-controlled lighting solution designed to enhance safety in your living spaces. Featuring a modern monochrome design in a stylish matt black finish, this light is perfect for installation in the plinths of bathroom and bedroom furniture. With dimensions of 54 mm in diameter and 17.8 mm in height, it requires a 40 mm drill hole for easy mounting. Equipped with an integrated motion detector and ambient light sensor, the Toe Kick Light automatically activates in response to movement within a sensor range of up to 3,000 mm, ensuring illumination only when needed. The warm white light, with a color temperature of 2,700 K, creates a cozy atmosphere while providing a luminous flux of 4 lumens and an efficacy of 13 lm/W. This energy-efficient device operates at a nominal voltage of 12 V and is classified as A+ for energy efficiency. The light is IP20 rated, making it suitable for indoor use. Supplied with a 2 m lead and mounting materials, the Hafele 833.73.111 Toe Kick Light is a practical and stylish addition to any home, ensuring safety and convenience in dark spaces.
Toe Kick Light, Sensor-Controlled, Hafele Lighting LED 2028, 12 V
Monochrome, drill hole : 40 mm (1 9/16″), matte black
Orientation light for living space and projects Motion detector is active when ambient light is less than 15 lx High-quality stainless steel cover
Energy efficiency For bulbs with a luminous flux of less than 60 lumens, regulation (EU) 2019/2015 does not provide an energy efficiency classification.
Attributes
Area of application: Safety lighting in plinths of bathroom and bedroom furniture
Cable length: 2,000.00 mm
Color temperature: 2,700 K
Degree of protection: IP20
Diffuser color/finish: opal white
Dim. (Ø x H): 54 x 17.8 mm
Dimmable: no
Drill hole Ø: 1 9/16″
Energy efficiency class: A+
Housing color/finish: black
Installation: Mounting in drilled hole
Installation reference: When using the 6-way distributor with switching function or Häfele Connect Mesh, please always connect this light with integrated switch to the 7th output port (continuous current) of the 6-way distributor.
Light color: Warm white
Luminous efficacy: 13.00 lm/W
Luminous flux: 4.00 lm
Mounting location: Drill hole
Nominal voltage: 12.00 V
Order reference: Please order Loox3 to Loox5 adapter (833.95.753) separately. One is required per light.
Sensor range: 0 – 3,000 mm
Supplied with: 1 light with pre-attached 2 m (78 3/4″) lead Mounting materials
Trim Color/ Finish: Black, matt
Version: Motion detector active from ambient light of 15 lx
Wattage: 0.34 W
Resources
- CAD data
- Declaration of conformity
- EU Declaration of Conformity
- Hafele_Lighting_ 2024 | Page 59
- Installation instructions
- Installation instructions for LED 2028
- Loox UL Listing G1 G2 G3
- Technical data sheet
