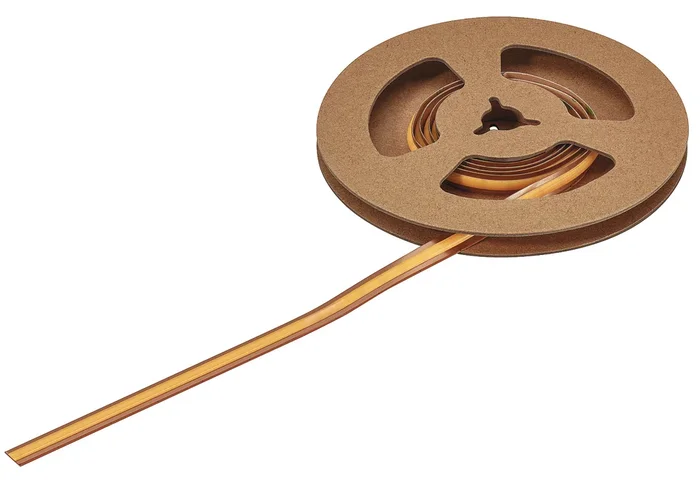

Hafele 833.74.506 Hafele Loox5 COB Gold LED Strip Light 2103, 12V
Hafele 833.74.506 LED Strip Light, COB Gold, Hafele Loox5 LED 2103, 12 V offers an exceptional lighting solution designed for a variety of applications. With 480 LEDs per meter, this strip delivers a luminous efficacy of 96 lm/W, producing a warm white light at a color temperature of 3000 K. Its innovative COB (Chip on Board) technology ensures uniform light output without visible LED dots, making it ideal for shallow profiles and indirect illumination of furniture, storage spaces, and behind glass edges. The self-adhesive installation simplifies the setup process, while the strip’s IP20 rating indicates that it is suited for indoor use. Measuring just 2 mm in height and 8 mm in width, the strip can be easily concealed within various settings. With a maximum visual strip length of 3 m and a power consumption of 4.8 W/m, it provides excellent performance while maintaining energy efficiency, classified as F. Notably, this LED strip is dimmable, allowing you to tailor the ambiance according to your needs. The Hafele 833.74.506 LED Strip Light is supplied as a 50 m roll, ensuring that you have ample length for your projects. Enhance your space with this versatile and efficient lighting solution.
LED Strip Light, COB Gold, Hafele Lighting LED 2103, 12 V
8 mm 2-pin (monochrome), 480 LEDs/m, 4.8 W/m, IP20, warm white 3000 K, 50 m
Uniform light output; LED dots are not visible Enables the use of shallow profiles
Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A directly following strip section with a new infeed is noticeably lighter. Maximum wattage-dependent strip length on the driver, see Technical data for LED strip lights.
Attributes
Area of application: Indirect illumination of furniture and furnishings, Storage spaces, Behind glass edges
Color temperature: 3,000 K
Contact surface length: 50,000.00 mm
Degree of protection: IP20
Dimmable: yes
Energy efficiency class: F
Height (inch): 1/16″
Installation: Self-adhesive
Light color: Warm white
Luminous efficacy: 96 lm/W
Luminous flux/m: 465 lm
Material: Plastic
Max. strip length (visual): 3.00 m
Min. bending radius: 30.00 mm
Nominal voltage: 12.00 V
Order reference: Please order lead separately.
Section length: 8.33 mm
Strip height: 2.00 mm
Strip length: 50.00 m
Strip width: 8.00 mm
Supplied with: 1 roll
Version: COB LED, i.e. continuous phosphor coating over all individual LEDs of the entire band, without visible points
Wattage/m: 4.80 W
Width (inch): 5/16″
Resources
- CAD data
- Certificate
- Fitting instructions for COB monochrome
- Hafele_Lighting_ 2024 | Page 23
- Hafele_Lighting_ 2024 | Page 26
- Installation instructions
