Description

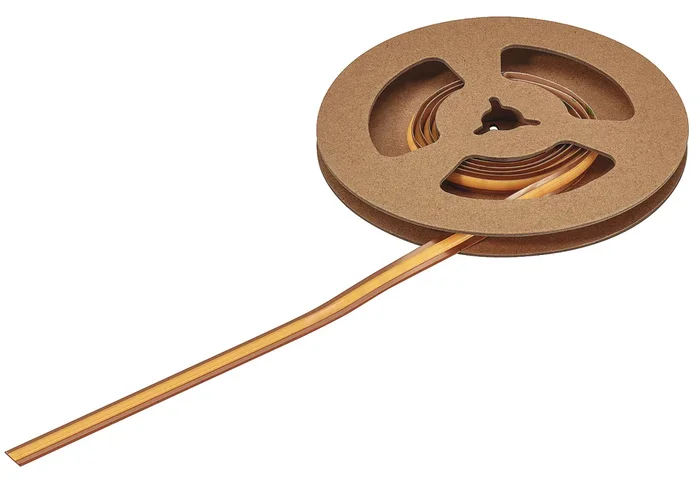

Hafele 833.74.511 Hafele Loox5 COB Gold LED Strip Light 2104 12V
Hafele 833.74.511 LED strip light, COB Gold, Hafele Loox5 LED 2104 12 V offers an innovative lighting solution designed to enhance your space with its warm white illumination at 3000 K. This 5-meter strip features 480 LEDs per meter, delivering an impressive luminous efficacy of 93 lm/W and a total luminous flux of 900 lm, ensuring bright and uniform light output without visible LED dots. With a slim profile measuring just 2 mm in height and 8 mm in width, this self-adhesive strip allows for seamless integration into shallow spaces and is perfect for indirect illumination of furniture, storage areas, or behind glass edges. The strip is rated IP20, making it suitable for indoor applications.Dimmable functionality adds versatility, enabling you to adjust the ambiance according to your needs. The maximum visual strip length is 2.5 meters, with a recommended aluminum profile for installations exceeding 9.6 W/m. The Hafele 833.74.511 is designed for a nominal voltage of 12 V and can be easily customized through lead orders.Enhance your interiors with the Hafele LED strip light, where modern design meets practical functionality.
LED strip light, COB Gold, Hafele Lighting LED 2104 12 V
8 mm 2-pin (monochrome), 480 LEDs/m, 9.6 W/m, IP20, warm white 3000 K, 5 m
Uniform light output; LED dots are not visible Enables the use of shallow profiles
Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A directly following strip section with a new infeed is noticeably lighter. Maximum wattage-dependent strip length on the driver, see Technical data for LED strip lights.
Attributes
Area of application: Indirect illumination of furniture and furnishings, Storage spaces, Behind glass edges
Color temperature: 3,000 K
Contact surface length: 5,000.00 mm
Degree of protection: IP20
Dimmable: yes
Energy efficiency class: F
Height (inch): 1/16″
Installation: Self-adhesive
Light color: Warm white
Luminous efficacy: 93 lm/W
Luminous flux/m: 900 lm
Material: Plastic
Max. strip length (visual): 2.50 m
Min. bending radius: 30.00 mm
Nominal voltage: 12.00 V
Order reference: Please order lead separately. Aluminum profile is recommended from 9.6 W/ m.
Section length: 8.33 mm
Strip height: 2.00 mm
Strip length: 5.00 m
Strip width: 8.00 mm
Supplied with: 1 roll
Version: COB LED, i.e. continuous phosphor coating over all individual LEDs of the entire band, without visible points
Wattage/m: 9.60 W
Width (inch): 5/16″
Resources
- CAD data
- Certificate
- Fitting instructions for COB monochrome
- Hafele_Lighting_ 2024 | Page 23
- Hafele_Lighting_ 2024 | Page 27
- Installation instructions
