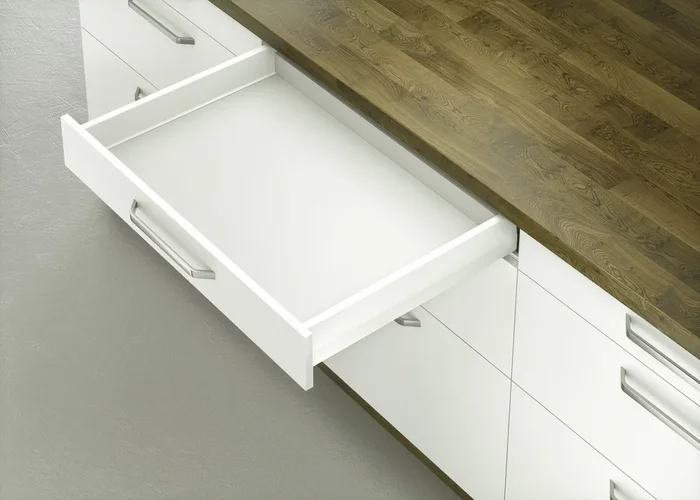

Hafele 551.54.726 Hafele Matrix Box P50 Drawer Side Runner, 92mm Height, 110 lbs Capacity
Hafele 551.54.726 Drawer Side Runner System offers a robust solution for your drawer needs, supporting a load-bearing capacity of up to 50 kg (110 lbs). Designed specifically for the Hafele Matrix Box P50, this system features a convenient drawer side height of 92 mm (3-5/8″) and a nominal length of 550 mm (21 5/8″).Crafted from durable steel, the drawer sides are powder-coated in white, while the cabinet runner is zinc plated for added resilience. The installation process is user-friendly, allowing for tool-free mounting and disassembly of the panel, which speeds up setup and enhances practicality.This system includes a full extension pull-out mechanism that features an integrated Smuso soft-closing and self-closing system, ensuring a smooth and quiet operation. Adjustments can be easily made from above, with height adjustments of ± 2.5 mm and side adjustments of ± 1.5 mm, providing flexibility for precise alignment.Please note that front fixing brackets are not included and should be ordered separately. Each package comes complete with one left and one right drawer side, cabinet runner, and cover caps featuring the Häfele logo relief. Elevate your drawer functionality with the Hafele 551.54.726 system, designed for both durability and convenience.
Drawer side runner system, Hafele Matrix Box P50, drawer side height (3-5/8″) 92 mm, load bearing capacity (110 lbs) 50 kg
Load bearing capacity 50 kg, Hafele Matrix Box P50 drawer set, drawer side height 92 mm, White, Length: 550 mm (21 5/8″)
Attributes
Adjustment facility: Convenient height and side adjustment from above when installed Height adjustment ± 2.5 mm Side adjustment ± 1.5 mm
Color/finish: White, Drawer sides: Powder coatedCabinet runner: zinc plated, Drawer sides: Powder coatedCabinet runner: zinc plated
Drawer side height: 92.00 mm
Front fixing brackets: not included
Height (inch): 3 5/8″
Installation: Mounting and disassembly of the panel without tools
Length (inch): 21 5/8″
Load bearing capacity: 50.00 kg
Material: Steel
Nominal length: 550.00 mm
Order reference: Please order recommended cylindrical head screw Cat. No. 013.20.930 for runner installation separately. Front fixing brackets for drawer not included in scope of delivery, please order separately.
Supplied with: 1 left and 1 right drawer side with rear panel fitting 1 left and 1 right cabinet runner 1 left and 1 right cover cap with Häfele logo relief
Type of pull out: Full extension, with integrated Smuso soft closing mechanism and self closing mechanism, with integrated rear panel fitting
Resources
- CAD data
- Certificate
- Fitting instructions for Matrix Box P 92 / 115
- Installation instructions
- LGA certificate Matrix Box P 50 kg
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 8.8
