Hafele 943.34.144 Mortise Offset Hinge Handle Set with Instructions
Hafele 943.34.144 Mortise Offset Hinge/Handle Set with handle offers a robust solution for sliding and folding door systems within the Al Fresco Summit range. Designed for doors weighing up to 220 lbs. (100 kg) and with a maximum height of 10′ 9 15/16″ (3.3 m), this hinge set is perfect for both residential and commercial applications. The construction features high-quality 316 marine grade stainless steel, ensuring improved strength and exceptional corrosion resistance, making it ideal for coastal climates. This hinge/handle set supports a door thickness of 1 3/8″ to 2 11/16″ (35 – 68 mm), and can accommodate a maximum door width of 39 3/8″ (1.0 m). With a load-bearing capacity of 220 lbs., it seamlessly integrates into configurations featuring up to 16 doors (8 left and 8 right). The concealed channels enhance the aesthetic appeal, while precision bearings reduce rolling resistance for smooth operation. Available in a striking PVD Rustic Black finish, this product not only combines functionality with style but also adapts to various design needs. For doors exceeding 2.4 m (96 1/2″), additional components such as spare hinges and optional jamb pivots are recommended. For customized configurations or quotes, contact a Häfele product specialist today.

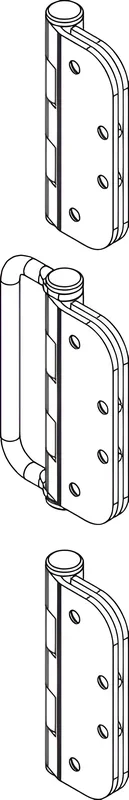

Mortise Offset Hinge/Handle Set with handle
Al Fresco Summit, PVD Rustic Black
The above listed part is a component of the Al Fresco Summit 75/100 slding/folding hardware system. The specifcations of the Al Fresco system are: Door weight: Max. (165 lbs.) 75 kg or (220 lbs.) 100 kg Door height: Max. (10 9 15/16″) 3.3 m Door width:Max. (39 3/8″) 1.0 m Maximum numbers of doors: 16 (8 left/8 right) Door thickness: -Non-mortise: (1 3/8″ – 2 11/16″) 35 – 68 mm -Mortise: (1 3/4″ – 2 11/16″) 44 – 68 mm Full corrosion resistant construction 316 marine grade stainless steel parts for improved strength and maximum corrosion resistance Hardware finishes: Satin stainless, polished stainless, PVD brass, and PVD rustic black Conealed channels enhances appearance Mortise and non-mortise hinges and hangers available Precision bearings top and bottom decrease rolling resistance Ideal for coastal climates
For doors exceeding 2.4 m (96 1/2″), refer to spare hinges, optional jamb pivot and security aligner. 150 kg (330 lbs.) option is available. To collaborate on your custom configuation, receive a quote or place an order, contact our Häfele product specialist at 1-888-437-7477.
Attributes
Color/finish: Black
Door material: Wood
Door processing: With recess
Folding hinge type: Folding hinge
For door height: ≤3,300 mm
For door height (inches): 10′ 9 15/16″
For door thickness: 35 – 68 mm
For door weight: ≤100 kg
For door width: ≤1,000 mm
For door width (inches): 3′ 3 3/8″
For max. panel thickness: Non-mortise: 2 3/4″
For min. panel thickness: Non-mortise: 1 3/8″
Load bearing capacity: 220 lbs.
Material: Stainless steel, quality AISI 316
