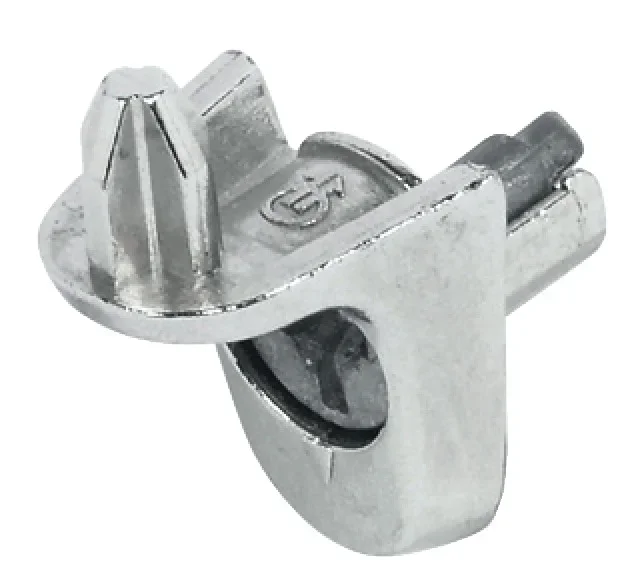

Hafele 282.26.715 5mm Hole Shelf Support
Hafele 282.26.715 Shelf Support for 5 mm Hole delivers exceptional strength and reliability for your shelving needs. Crafted from durable zinc alloy, this shelf support boasts a remarkable load-bearing capacity of 80 kg, adhering to the stringent standards of DIN EN 1727:1998-06. Each support can bear up to 12.50 kg, making it an ideal choice for various applications when used in conjunction with multiple supports. Designed for easy insertion and tightening into a drilled hole, this unit features a lip that enhances stability and security. The nickel-plated finish not only provides a sleek, attractive look but also adds a layer of protection against corrosion. The support is specifically engineered for wooden shelves, ensuring a firm hold without compromising the integrity of the material, although it is not suitable for hardwood. Installation is straightforward, requiring just a 180° turn of the clamping screw, which minimizes the risk of surface damage to the drill hole. With a pin length of 8 mm and a support size of 7 mm, the Hafele 282.26.715 is an excellent choice for both building professionals and knowledgeable homeowners looking to enhance their shelving systems with dependable hardware.
Shelf Support for 5 mm Hole
Steel, load-bearing capacity 80 kg (in compliance with DIN EN 1727:1998-06), with lip, Nickel-plated
For insertion and tightening into a drilled hole
Not suitable for hardwood
Attributes
Area of application: for wooden shelves
Color/finish: nickel plated
Distance fixing lug: 10.00 mm
For drill hole Ø: 5.00 mm
Installation: For insert fitting
Installation reference: Tightening by a 180° turn of the clamping screw; therefore avoiding surface damage to the drill hole For inserting into drill hole ⌀ 5 mm Avoid surface damage to the hole by tightening with screw
Load bearing capacity per item: 12.50 kg
Load bearing capacity with 4 shelf supports: 50.00 kg
Material: Zinc alloy
Note on load bearing capacity: tested with 1.7 kg plate for impact test in accordance with DIN EN 16337:2013-08
Pin length: 8.00 mm
Support size: 7.00 mm
Version: With fixing lug as shelf security feature
Resources
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 11.115
