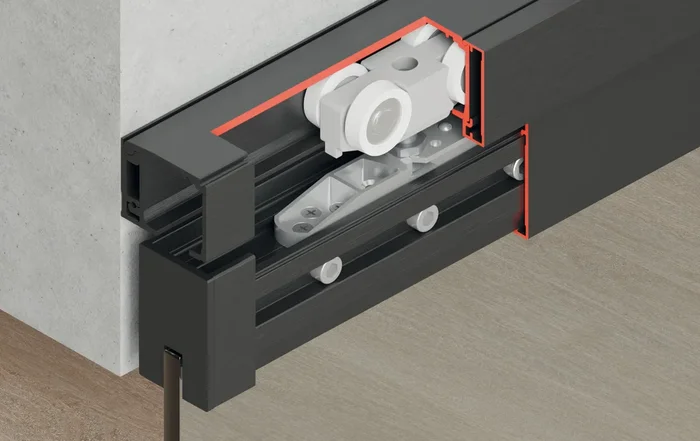

Hafele 941.25.015 Hafele Slido D-Line11 Sliding Door Fitting Set, No Track, 50L/80L/120L
Hafele 941.25.015 Sliding Door Fitting is designed for 1-leaf glass sliding doors weighing between 50 and 120 kg. This robust fitting features a soft and self-closing mechanism on one side, ensuring smooth operation with low opening force, making it user-friendly. The running gear is equipped with an axle bearing, enhancing durability and performance. With a door width requirement of at least 579 mm, this fitting accommodates various door designs and sizes. For added efficiency, the closing speed has been tested up to 0.5 m/s, while the shock absorber effectively moderates the closing speed to 0.4 m/s. The system allows for retrofitting or replacement of the soft and self-closing mechanism, ensuring flexibility according to your needs. Installation options include ceiling and wall mounting, suited for both laminated and tempered safety glass with specific thickness requirements. This set is supplied with two running gears-one featuring the soft closing mechanism-along with a clear threshold floor guide and a track buffer with a retaining spring. Please note that additional components such as glass clamps and tracks must be ordered separately. The Hafele 941.25.015 is the perfect solution for modern spaces, marrying functionality with aesthetic appeal.
Sliding door fitting, Hafele Slido D-Line11 50L / 80L / 120L, set without running track
For 1-leaf glass sliding doors, for door weight 50–120 kg, With soft and self closing mechanism on one side, Running gear with axle bearing, Track buffer with retaining spring, door width: =>579 mm
Soft and self closing mechanism: Low opening force – easy and convenient operation Tested with increased closing speed up to 0.5 m/s Can be retrofitted or replaced at any time Accessibility: Opening force with door weight 50 kg: 18 N / 80 kg: 21 N Shock absorber: Closing speed with shock absorber tested up to 0.4 m/s
Please note when using shock absorber with retaining spring: The door may not close completely if the closing speed is too low, if it is too high, the door may bounce back slightly. For sets without or with soft and self closing mechanism on one side: If required, soft and self closing mechanism or shock absorber can be retrofitted.
Attributes
Adjustment facility: Height adjustment facility: -4 – 4 mm, ±2 (depending on the respective installation situation, see drawings)
Area of application: for 1-leaf and 2-leaf sliding doors
Controller installation options: Ceiling installation, Wall mounting
For door material: glass
For door weight: ≤120 kg
For door width: ≥574 mm
For glass thickness with laminated glass: 8–8,7 mm, 10–10,7 mm, 13 mm
For glass thickness with tempered safety glass: 8 mm, 10 mm, 12 mm, 12.7 mm
Installation reference: No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).
Max. door weight: 264.00 lb
Model: 120L
Note on door thickness: For tempered safety glass: 3/8″ and 1/2″ For laminated glass: 11/32″ and 7/16″
Number of doors: 1.00
Number of doors per system max.: 1 to 2
Order reference: Please order glass clamp shoe, tracks, panels and accessories separately. Please order the black floor guide for black systems separately.
Running gear version: Running gear with axle bearing
Running position: Top
Soft closing mechanism: with soft and self closing mechanism on one side, with track buffer with retaining spring on one side
Supplied with: 2 running gears (1 with soft and self closing mechanism) 1 clear threshold floor guide 1 track buffer with retaining spring 1 release device with stopper for soft and self closing mechanism
