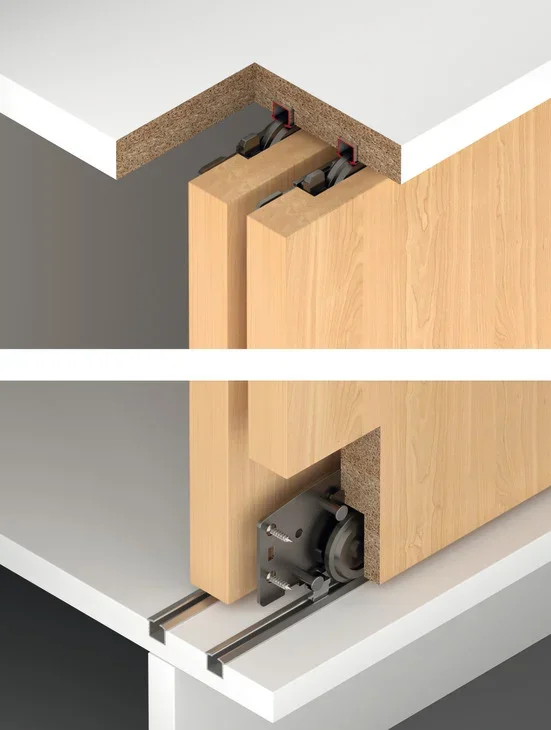

Hafele 401.30.017 Hafele Slido F-Line 18 50A Sliding Door Fitting Set (No Tracks)
Hafele 401.30.017 Sliding Door Fitting, Hafele Slido F-Line18 50A, is designed for bottom running wooden doors with a door thickness starting from 16 mm and accommodating weights of up to 50 kg. This system is tailored for one door and features an advanced soft and self-closing mechanism on both sides, ensuring a smooth and silent operation. The sliding door fitting can be surface or recess mounted, with the soft closing mechanism integrated into the running track, providing flexibility in installation. It’s essential to adhere to the installation drawings and instructions, as minimum door thickness may vary based on the chosen mounting option.The set includes four running gears-two for the top and two for the bottom-along with four end caps for the recessed track, two soft and self-closing mechanisms, 20 fixing screws, and two hexagon sockets. However, please note that the running tracks, guide tracks, and fixing materials are not included; these must be ordered separately.Ideal for aluminum frames with a minimum width of 50 mm, this fitting supports a maximum of three doors per system, offering versatility and efficiency in various architectural settings. Enhance your space with the reliability and functionality of Hafele’s sliding door solutions.
Sliding door fitting, Hafele Slido F-Line18 50A, set
for 1 doors, with soft and self closing mechanism on both sides
Soft closing mechanism integrated in the running track Surface-mounted or recess-mounted installation of the running gears
The minimum door thickness differs for the different installation variants. Please note the installation drawings and the installation instructions!
Attributes
Cabinet version: with bottom running door wings
Door processing: With recess, for screw fixing
For aluminum frame width: 50 mm
For door material: wood
For door thickness: ≥16 mm
For door width: ≥380 mm
Installation reference: for surface mounting or recess mounting of the running gears and the running and guide tracks, for aluminium frames, from 50 mm wide
Material/finish: Rollers: PlasticAxis: Steel
Note on door width: with soft and self closing mechanism at both sides
Number of doors: 1.00
Number of doors per system max.: 2 to 3
Number of rollers: 1.00
Order reference: The running tracks, guide tracks and the fixing material are not included in the set. Please order separately. Please order one set for 1 door and one set for 2 doors if there are 3 doors.
Running gear guided by: Ball bearing
Running position: Top
Set: Set without tracks
Soft closing mechanism: with soft and self closing mechanism on both sides
Supplied with: 4 running gears (2 top and 2 bottom) 4 end caps for recessed track 2 soft and self closing mechanisms 20 fixing screws 2 hexagon sockets
Type of opening: linear
Resources
- CAD data
- Installation instructions
- Slido F-Line18 50A installation instructions
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.53B
