Description

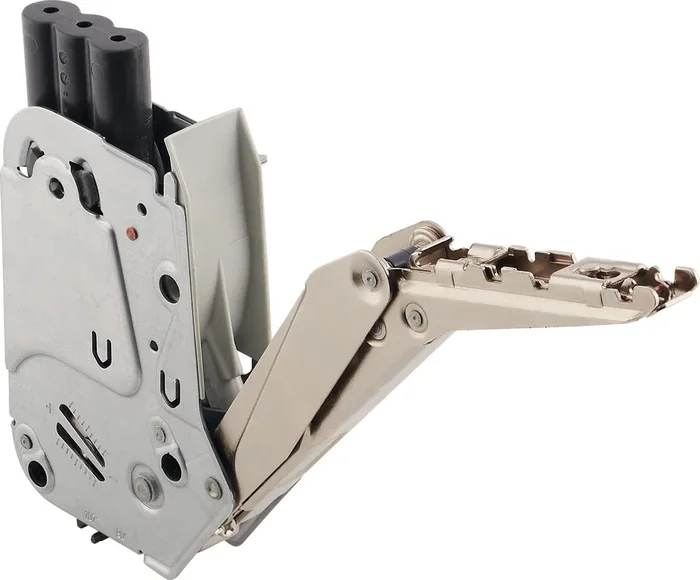

Hafele 372.91.410 Swing Up Free Flap Fitting 3.15
Hafele 372.91.410 Swing Up Fitting, Free Flap 3.15 offers an innovative solution for larger, one-piece flaps crafted from wood, glass, or aluminum frames. This model is designed for efficiency, requiring minimal space without the need for additional hinge connections, making it ideal for modern cabinetry.Equipped with an integrated soft closing mechanism, this fitting ensures a seamless and gentle closure, enhancing user experience while maintaining safety. The flap locks securely in any position, providing versatility and ease of use when accessing storage compartments.Included in the package is one stay flap fitting set, which consists of left and right fittings, as well as two front fixing brackets tailored for wooden flaps or flaps with wider aluminum frames starting from a frame width of 45 mm. Installation instructions and a paper drilling template are also provided to facilitate a straightforward setup process. It’s important to note that the choice of stay flap fitting and push catch for handle-free front panels should be based on cabinet height and flap weight. For flaps with a 20 mm aluminum frame and for all-glass front panels, separate adapters must be ordered. The Hafele Swing Up Fitting is an excellent addition to any contemporary design, merging functionality with aesthetic appeal.
Swing Up Fitting, Free flap 3.15
For larger, one-piece flaps made from wood or glass or with aluminum frame, Model D
Extremely little space requirement No additional hinge connection required With integrated soft closing mechanism Flap locks in any position
Attributes
Order reference: The choice of stay flap fitting and push catch for handle-free front panels depends on the cabinet height and the flap weight. For model selection see sample measurements tables. Please order adapter for flaps with 20 mm aluminium frame separately. Please order glass gluing adapter for all-glass front panels separately.
Supplied with: 1 stay flap fitting set (1 piece each left/right, 2 front fixing brackets for wooden flaps or flaps with wide aluminium frame from frame width 45 mm, installation instructions and paper drilling template)
Resources
- Certificate
- Installation instructions
- Installation instructions
- Installation instructions for Free flap 3.15 E
- LGA – quality – certificate for Free flap 3.15
- Safety note for Free flap 1.7 and 3.15
