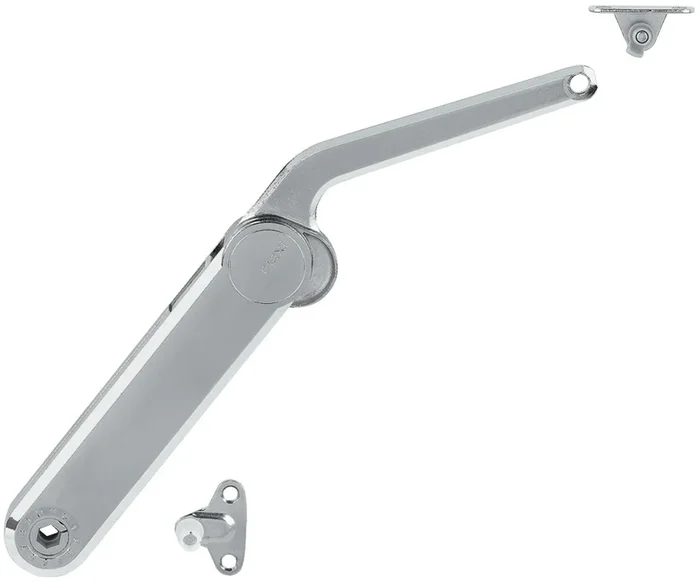

Hafele 373.69.312 Maxi Swing-Up Fitting Complete Set
Hafele 373.69.312 Swing-Up Fitting, Maxi, Complete Set offers a versatile solution for wooden or glass flaps, including those with aluminum frames. This fitting, crafted from durable zinc alloy and finished in sleek nickel plating, supports flaps weighing up to 50 kg, making it ideal for both light and heavy applications. The adjustable mounting points accommodate various designs, enabling the creation of handle-free front panels and effortless access to contents. Featuring a multi-position stop function, this fitting allows you to set the flap at any desired angle, enhancing usability. An optional soft closing mechanism can be added for a smooth operation, and it can be used in conjunction with Häfele Metalla 510 Push self-opening concealed hinges or concealed hinges with integrated soft-closing features, pending trial mounting. Installation is straightforward, requiring no tools thanks to its innovative clip system. The Hafele Swing-Up Fitting is designed for cabinet heights ranging from 300 to 1,000 mm, with a frame width starting at 45 mm. Height can be adjusted by ±2 mm, while side adjustments and tilting angles provide further customization. For optimal performance, two Maxi fittings are recommended for flap widths of 600 mm (23 5/8″) and above.
Swing-Up Fitting, Maxi, Complete Set
For wooden or glass flaps or flaps with aluminum frame, Model D, nickel
MAXImal talent: By varying the mounting points with just one fitting, many applications such as front panels without handles or effortless opening of even large and heavy flaps up to 50 kg can be realised (depending on flap height and mounting situation) Multi-position stop function: The fitting can be adjusted so that the flap stops in any position. separate soft closing mechanism available as accessory can also be used in combination with Häfele Metalla 510 Push self-opening concealed hinges or concealed hinges with integrated soft-closing mechanism (trial mounting required)
Attributes
Adjustment facility: height adjustment ±2 mm, side adjustment +3/-1 mm, tilting angle ±1.5 mm and adjustment facility for holding power with SW10 hex key
Area of application: for flaps made from wood or with aluminium frame, from frame width of 45 mm
Color/finish: Nickel plated
Edge distance: 37.00 mm
For cabinet height: 300 – 1,000 mm
For lid weight: ≤27.3 kg, note sample measurements table
Installation: Without tools (clip system)
Lid material: Wood
Material: Zinc Alloy
Model: D
Mounting: right and left hand use
Order reference: Use two Maxi fittings for flap widths from 600 mm (23 5/8″) and above.
Supplied with: 1 lid stay 1 mounting bracket for cabinet 1 screw-on bracket for flap (for Euro screws)
Version: Complete set
Width (inch): Frame: From 1 3/4″
