Description

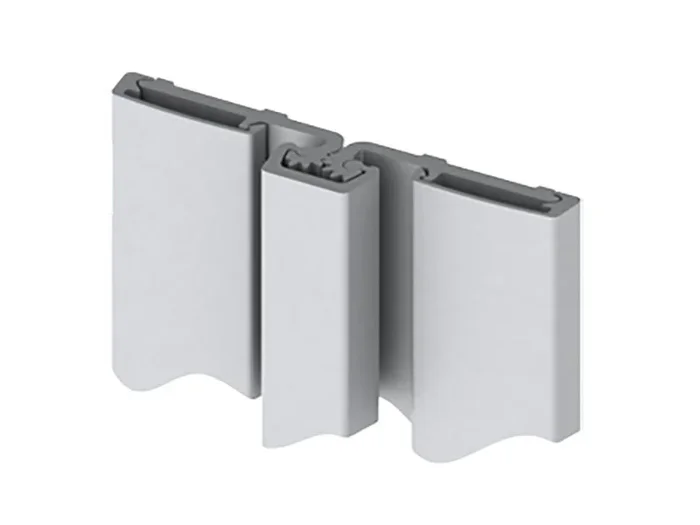

Hager 780-057HD 83 DBA Continuous Hinge
All Roton continuous geared hinges have cutout design and spacing coordination is thereby eliminated in both new construction and restoration work. Reinforcement plates are not required in doors or frames except where the gauge is too thin for the fasteners in relation to the door weight or where abusive operation is anticipated.
- Full Surface
- B-Fold Applications
- Security Molding
- 1/32″ Recommended Clearance
- 1/32″ Clearance
Attributes
Restriction message: Oversized item, additional shipping charges may apply.
Manufacturer surcharge: 8.75%
Base Material: Aluminum
Bearing Type: Continuous Gear
Commercial Residential: Commercial
Finish: 313
Finish : Dark Bronze Anodized Aluminum
Finish Family: Dark Bronze
Fire Rated: 3 Hours Metal, 90 Min. Wood Composite (w/Studs)
Fire Rating: 3 Hours Metal, 90 Min. Wood Composite (with Studs)
Grade: Grade 1
Height: 83 In.
Hinge Type: Continuous Hinge, Full Surface
Installation: Commercial
Limited Warranty: 1 Year
Pack Qty: 1
Restrictions: Oversized
Series: Roton Continuous Geared Hinges
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Subtype: Continuous Hinge
Type: Hinges and Pivots
Unit of Measure: Each
Weight: Heavy Duty
