Description
NGP HD4200DKB 119″ Half Surface Continuous Geared Hinge for 1-3/4″ to 2-1/4″ Doors
NGP HD4200DKB 119″ Half Surface Swing Clear Continuous Geared Hinge is engineered for durability and performance, making it an ideal choice for commercial restroom applications. Constructed from aluminum alloy 6063-T6 and anodized after machining, this hinge boasts a stylish dark bronze finish that complements various design aesthetics while providing resistance to wear and tear. Featuring specially designed involute intermeshing gears, the HD4200DKB ensures smooth operation, while proprietary Teflon-infused self-lubricating wear-resistant bearings significantly reduce maintenance needs. This hinge requires no reinforcement, except for exceptionally heavy or high-frequency doors, making it versatile for different installation scenarios. With a generous length of 119 inches, it is ANSI/BHMA certified to A156.26 Grade 1 standards, capable of supporting doors up to 600 pounds. Additionally, it is fire-rated for 90 minutes on hollow metal or wood door leaves up to 4’0″ x 7’2″.The NGP HD4200DKB comes with a lifetime warranty on the door opening, ensuring peace of mind for building professionals and homeowners alike. Please note that shipping may require common carrier arrangements for this oversized product. For detailed installation instructions, refer to the documentation provided.

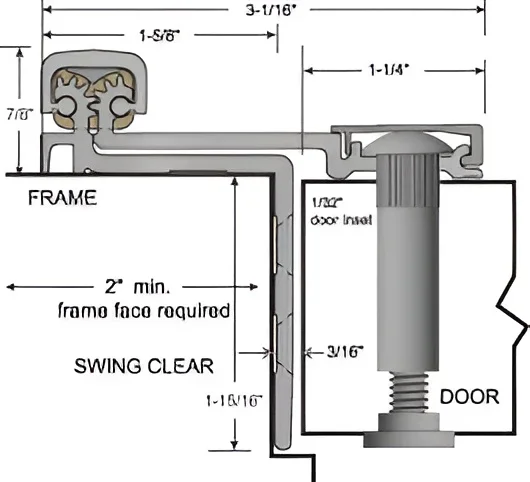

Half Surface Swing Clear Continuous Geared Hinge 1/32″ Door Inset for 1-3/4″ to 2-1/4″ Doors
- No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
- Frame leaf: #12-24 TEK flat head MS
- Specially designed involute intermeshing gears
- Standard lengths: 83″, 85″, 95″, 119″
- Lifetime of the door opening warranty
- Note: For Door Sizing Refer to Installation Instruction
- Door leaf: #12-24 TEK pan head MS and 1/4″-20 thru-bolts
- Aluminum alloy 6063-T6; Anodized after machining
- Dark bronze anodized finish
- Proprietary teflon infused self-lubricating wear resistant bearings
Attributes
Ship via: No UPS – Common Carrier Only
Application: No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Finish: Dark bronze anodized finish
Length: 119″
Material: Aluminum alloy 6063-T6; Anodized after machining
Resistance: Proprietary teflon infused self-lubricating wear resistant bearings
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 – 600 lb. door.
Standard-1: Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4’0″ x 7’2″.
Warranty: Lifetime of the door opening warranty
