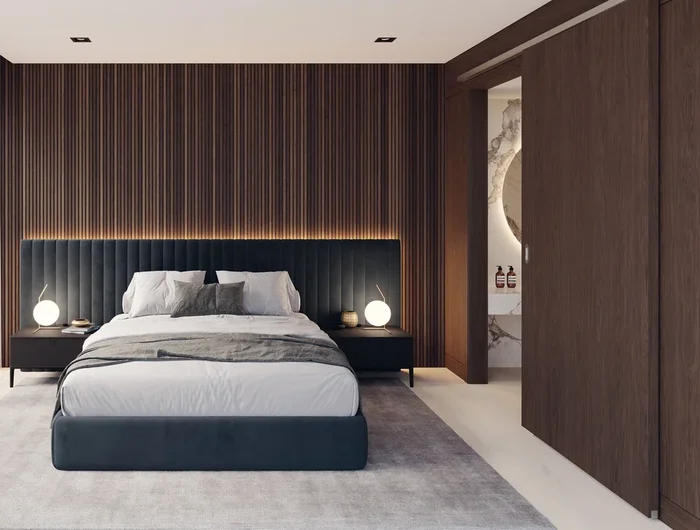

Hafele 941.04.017 HAWA Junior 100 B Acoustics Set Sliding Door Fitting
Hafele 941.04.017 Sliding Door Fitting, HAWA Junior 100 B, Acoustics Set, is designed for seamless integration with a single sliding wood door, accommodating a weight of up to 100 kg. This system features height adjustment capabilities ranging from -2 to +2 mm, ensuring a perfect fit for doors up to 2,500 mm in height and 44 to 50 mm in thickness.Equipped with SoftStop on both sides, this fitting allows for effective damping of noise, drafts, and unwanted light, achieving a maximum sound insulation value of 38 decibels, depending on door and wall construction. The low opening force of less than 30 N (6.7 lbs.) facilitates easy operation, making this solution ideal for soundproofing and thermally separating door systems.Installation options include ceiling or wall mounting, with provisions for integrated ceiling and wall pocket solutions. The supplied components include running gears, carrier profiles, and an adjustment wrench, ensuring a straightforward installation process.For optimal performance, a vertical seal must be provided on-site, with a minimum projection of 6 mm. The Hafele HAWA Junior 100 B is perfect for architects and builders looking for a reliable, stylish, and functional sliding door solution.
Sliding door fitting, HAWA Junior 100 B, Acoustics Set
For 1 sliding wood door, height adjustable, for door weight up to 100 kg, without soft and self closing mechanism, with SoftStop on both sides
Effective damping of noise, drafts, odors and unwanted light incursions between two rooms With SoftStop on both sides, without soft close
Low opening force < 30 N (6.7 lbs.)
Sound rating depends on the door and wall construction a maximum sound insulation value of 38 decibels can be achieved.
No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the center of the running track (optional).
Attributes
Adjustment facility: Height adjustment facility: -2 – 2 mm, Height ±4 mmtrack buffer with adjustable retaining spring and cover cap
Controller installation options: Ceiling installation, Wall mounting, Integrated ceiling installation, Wall pocket solution
Door processing: With recess
For door height: ≤2,500 mm
For door material: wood
For door thickness: 44 – 50 mm
For door weight: ≤100 kg
For door width: 820 – 1,680 mm
Installation: Suspension with suspension carriage, Suspension with recessed support profile
Installation reference: The divider profile is fitted during the production of the pocket structure (model 100 B Pocket Acoustics)
Internal opening width: 750 – 1,500 mm
Max. door weight: 220.00 lb
Model: 100 B
Note: The contact surface for the vertical seal must be provided on site (min. 6 mm projection in relation to the wall structure) e.g. using a block frame or perimeter frame. Existing plinth strip on site can collide with the vertical seal, plan for doubling if necessary. Gap dimension to floor: floor gap of 8-12 mm can be taken up by the seal. The use of a soft and self closing mechanism is possible at the opening side with partially opening doors. Detailed information about the sound insulating values can be found at www.haefele.de.
Note on door width: Different door width for pocket door solution: 800–1550 mm.
Number of doors: 1.00
Number of doors per system max.: 1
Soft closing mechanism: without soft and self closing mechanism, with shock absorber with retaining spring on both sides
Suitable for: Soundproofing and thermally separating door systems, Wall pocket solution
Supplied with: 2 running gears 2 carrier profiles with suspension plate incl. M10 bolt 1 SoftStop, with retaining spring and ramp 1 SoftStop, with retaining spring 1 Cover cap set, plastic, aluminum finish 1 adjustment wrench
