Description
Hafele 941.04.002 Hawa Junior 100 Z Pocket Sliding Door Fitting Set
Hafele 941.04.002 Sliding Door Fitting, Hawa Junior 100 Z /100 Z Pocket, set offers an efficient solution for both 1-leaf and 2-leaf wooden sliding doors. Designed to support door weights of up to 100 kg, this fitting features a height-adjustable, two-way suspension system that ensures seamless operation. The low opening force enhances user convenience, making it easy to operate, while the innovative Hawa SoftMove 100 mechanism provides soft and self-closing capabilities. This system is compatible with doors up to a height of 4,000 mm and a width of 3,000 mm, accommodating various door thicknesses between 35 and 80 mm. The sliding door fitting can be easily installed via ceiling or wall mounting options, allowing for versatile application in any space. For pocket door solutions, the design facilitates subsequent disassembly of the running track without needing to open the wall. Included in the set are two running gears, two two-way suspensions, and a clear threshold floor guide. The SoftStop feature on both sides ensures a gentle stop, enhancing overall functionality. With these thoughtful features, the Hafele Hawa Junior 100 Z system is perfect for modern, barrier-free living environments.
Sliding door fitting, Hawa Junior 100 Z /100 Z Pocket, set
for 1-leaf and 2-leaf wooden sliding doors, height adjustable, two-way suspension, for door weight up to 100 kg, without soft and self closing mechanism, with SoftStop on both sides
low opening force – easy and convenient operation Barrier-free due to low operating force new, Hawa SoftMove 100 soft and self closing mechanism Push-to-Open function due to spring buffer, for ejecting the fully inserted door from the wall pocket
The greater distance between the door leaf and the wall results in greater demands on the load bearing capacity of the wall (lever effect). Sufficient load bearing capacity must be ensured. No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).
Attributes
Adjustment facility: Height adjustment facility: -4 – 4 mm, Door side adjustable,Track buffer with adjustable retaining spring
Area of application: for 1-leaf and 2-leaf sliding doors
Controller installation options: Ceiling installation, Wall mounting, Wall pocket solution
Door processing: for screw fixing
For door height: ≤4,000 mm
For door material: wood
For door thickness: 35 – 80 mm
For door weight: ≤100 kg
For door width: ≤3,000 mm
Installation: Suspension with screwed on two-way suspension
Installation reference: The door can be installed and removed from the front or the side. Pocket door solution: subsequent disassembly of the running track is possible without opening the wall, running gear and soft and self closing mechanism can be removed, Stopper position in the wall pocket, readjustable.
Max. door weight: 220.00 lb
Model: 100 Z
Note on door width: The max. door width for the pocket door solution is 1,500 mm.
Number of doors: 1.00
Number of doors per system max.: 1 to 2
Running position: Top
Soft closing mechanism: without soft and self closing mechanism

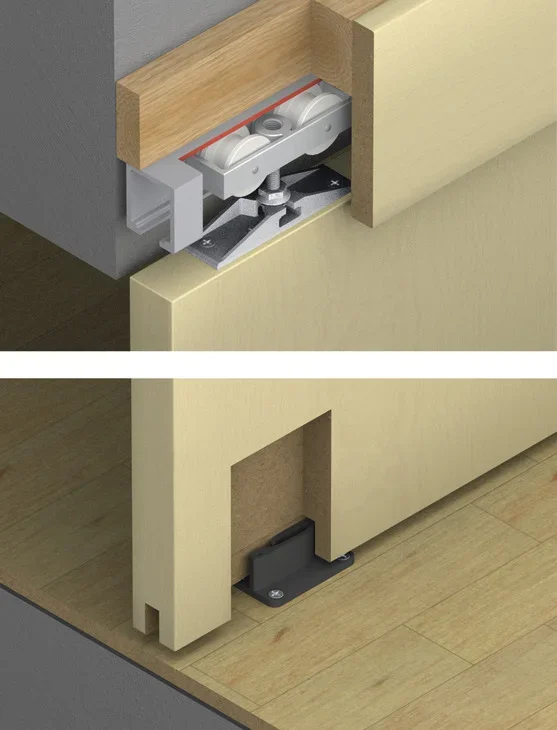

Supplied with: 2 running gears 2 two-way suspensions 1 clear threshold floor guide 60 mm 2 SoftStop with retaining spring 1 wall buffer Accessories
Version: with SoftStop on both sides
