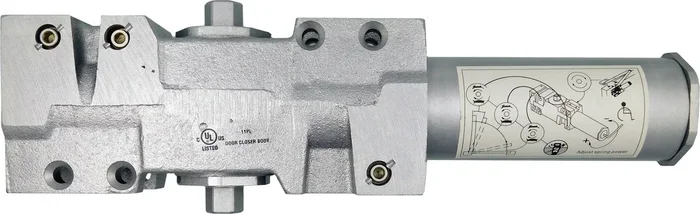

Arrow Lock DCN516-2-DKBZ Heavy Duty Surface Door Closer, Non-Hold Open Arm, Adjustable Spring Size 1-6
Arrow Lock Company DCN516-2-DKBZ Heavy Duty Surface Door Closer offers a robust solution for high-traffic environments, making it a perfect choice for institutions and commercial spaces. This door closer is engineered with a heavy-duty cast iron body and features hardened steel rack and pinion mechanisms, ensuring durability and reliability under rigorous use. Designed with versatility in mind, the DCN516-2-DKBZ includes an adjustable spring size ranging from 1 to 6, allowing it to accommodate various door widths from 24 inches to 60 inches. The non-hand open arm provides a full plastic cover for added protection and aesthetics. This model also incorporates a dead stop feature, which limits door openings between 90° and 110°, effectively preventing damage to walls and door frames. With two non-critical adjusting valves for closing speed control and a backcheck intensity valve, you can fine-tune the performance to suit your needs. The DCN516-2-DKBZ is UL/cUL listed and meets stringent ANSI and ADA requirements, ensuring compliance with safety standards. Supplied with fully threaded self reaming/tapping screws and a 10-year limited warranty, this door closer represents an ideal blend of functionality and value, confirming Arrow Lock Company’s commitment to quality and performance in security hardware.
Heavy Duty Surface Door Closer, Dead Stop Non-Hold Open Arm, Full Plastic Cover, Adjustable Spring Size 1-6, Grade 1, 690/DKBZ Painted Dark Bronze
Notice: The info below is not item specific.
The DCN500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications.
Features:
- Heavy duty cast iron body.
- Hardened steel rack and pinion.
- High tensile steel springs.
- Staked valves.
- Two non-critical adjusting valves (sweep and latch) control closing speed.
- Backcheck intensity valve.
- All temperature fluid.
- Full plastic cover standard.
- Non-handed for regular, top jamb and parallel arm mount applications.
- Supplied with fully threaded self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4″ thick doors.
- DCN5xx-1 Series door closers are supplied with a hold open arm.
- DCN5xx-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°
- DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°
- Packaging: one per box and four boxes per carton.
- 10 year limited warranty.
Certification:
- UL/cUL listed.
- UL10C listed for positive pressure to comply with UBC-72 (1997)
- Meets the requirements of ANSI A156.4 and ANSI ICC A117.1
- Meets ADA requirements (Americans with Disabilities Act)
Specifications:
- Interior Door Width:
- Regular Arm & Tob Jamb
- 1: 24″ (610mm) to 30″ (762mm)
- 2: 30″ (762mm) to 34″ (865mm)
- 3: 34″ (865mm) to 38″ (965mm)
- 4: 38″ (965mm) to 48″ (1219mm)
- 5: 48″ (1219mm) to 54″ (1372mm)
- 6: 54″ (1372mm) to 60″ (1524mm)
- Parallel Arm
- 2: 24″ (610mm) to 30″ (762mm)
- 3: 30″ (762mm) to 34″ (865mm)
- 4: 34″ (865mm) to 38″ (965mm)
- 5: 38″ (965mm) to 48″ (1219mm)
- 6: 48″ (1219mm) to 54″ (1372mm)
- Exterior & Vestibule Door Width:
- Regular Arm & Tob Jamb
- 3: 24″ (610mm) to 30″ (762mm)
- 4: 30″ (762mm) to 36″ (914mm)
- 5: 36″ (914mm) to 42″ (1067mm)
- 6: 42″ (1067mm) to 48″ (1219mm)
- Parallel Arm
- 4: 24″ (610mm) to 30″ (762mm)
- 5: 30″ (762mm) to 36″ (914mm)
- 6: 36″ (914mm) to 42″ (1067mm)
Finishes:
- 689/AL – Aluminum
- 690/DBZ – Dark Bronze
- 693/BLK – Black
Attributes
Alternate Codes: DCN516-2-DKBZ, DCN5162DKBZ
Category: Door Closers, Economy Surface Mount, Economy Surface Mount Misc. Parts
