Description

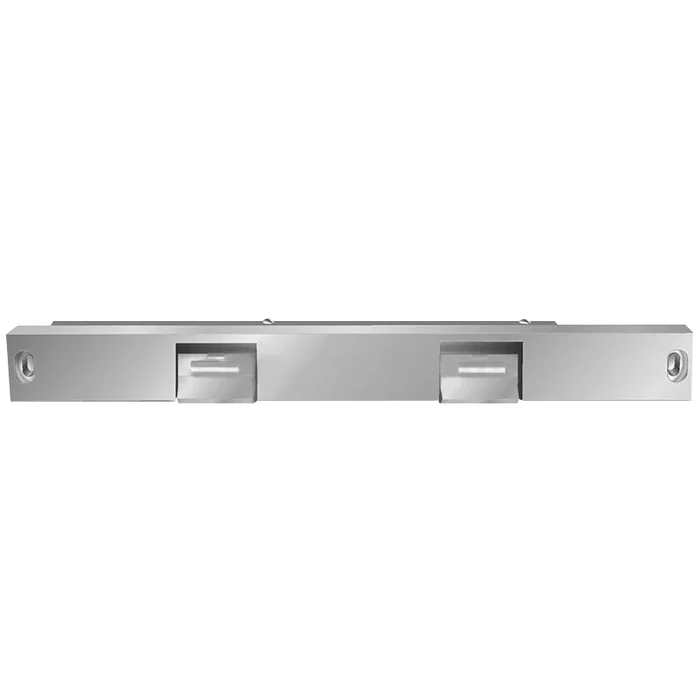

HES 3104124D606 310-4-1 24D Electric Strike Satin Brass Finish
Assa Abloy Electronic Security Hardware – Hes 3104124D606 310-4-1 24D Electric Strike Satin Brass Finish
- Ul 10C Fire-Rated, 3 Hour Single Door (Fail Secure Only)
- ANSI/BHMA A156.31, Grade 1
- Tamper Resistant, Heavy-Duty Construction
- Endurance Rating 500,000 Cycles
- Non Handed
Attributes
Adjustability: Horizontal
Amp Draw: .51 @ 12V .25 @ 24V
Application: Surface Vertical Rod Pairs
Baa Qualified: Yes
Base Material: Brass
Commercial Residential: Commercial
Complete Pack Options: Complete Pack for vertical rod spacing 4″ and 4-3/4″
Configuration: Double, 4-3/8″ ctc
Country of origin: USA
Dynamic Strength (ft-lbs): 70
Endurance (cycles): 1,000,000
Faceplate Size: 13-3/8″ x 1-1/2″
Fail Safe | Fail Secure: Fail Secure
Finish: 606 Satin Brass, clear coated
Finish Family: Matte Brass
Fire Rated: No
Fire Rating: No
For Use With: Surface Vertical Rod Exit Devices
Frame Application: Metal or Wood
Frame Material: NA
Function: Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs.
Installation: Commercial
Keeper Size: PK Keeper
Latchbolt Accommodation: Pullman Latchbolts
Limited Warranty: 5 Years
Lock Type: Exit Device
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt and locking cam monitor with auxiliary switch
Operating Voltage: 24 VDC
Origin: USA
Pack Height: 2.5″
Pack Length: 17.25″
Pack Qty: 1
Pack Volume: 258.75 in³
Pack Width: 6″
Series: 310 Series
Shim Type: NA
Ship Weight: 5.2 lbs.
Strike: 310-4-1 24D Electric Strike
Strike Body Depth (in): 0.75
Strike Body Height (in): 14
Strike Body Width (in): 1.5
Subtype: Electric Strikes
Surface Mounting: NA
Tamper Resistant: Yes
Type: Electronics
Unit of Measure: Each
Upc: 740090048727
Voltage: 12|24
Warranty: SecuriCare five-year, no fault, no questions asked warranty
