Description
HES 1006CLB-F-630-LBSM Fail Safe Electric Strike Instructions
HES 1006CLB-F-630-LBSM Electric Strike Fail Safe delivers unmatched security and reliability for both commercial and residential applications. This complete electric strike operates at dual voltages of 12/24VDC, making it versatile for various installations. Its fail-safe design ensures that in the event of a power failure, the door remains unlocked, enhancing safety during emergencies. Crafted from heavy-duty satin stainless steel, the 1006 series is engineered to withstand rigorous use, with static strength exceeding 3,000 lbs and dynamic strength of 350 ft-lbs. The dual interlocking plunger design not only enhances security but also allows it to accommodate all locks designed for an ANSI 4-7/8″ strike plate. With a remarkable endurance rating of over 1,000,000 cycles, this electric strike is built for longevity. The 1006 features multiple faceplate options and can be installed on metal or wood frames, ensuring compatibility with various door types. Additional features include a latchbolt strike monitor for enhanced security feedback and tamper-resistant construction. With an easy plug-in connector and included full keeper shims for horizontal adjustment, installation is straightforward and efficient. Backed by a five-year limited warranty, the HES 1006CLB-F-630-LBSM Electric Strike is your reliable choice for advanced door security solutions.
Electric Strike Fail Safe

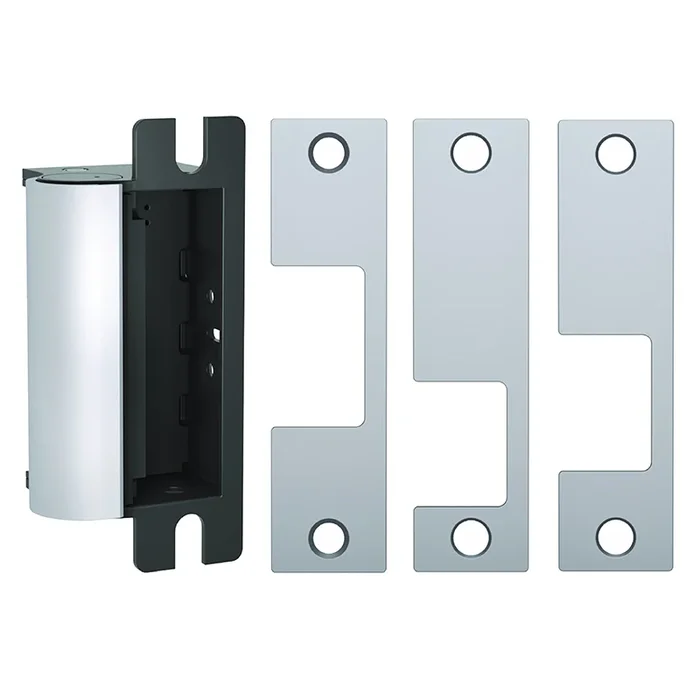

Fail Safe, Complete 12/24VDC Electric Strike, J, KD and KM Faceplates, Latchbolt Strike Monitor, Satin Stainless Steel
The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8″ strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8″ strike plate.
Frame application
- Metal
- Wood
Electrical
- .45 Amps at 12VDC* continuous duty
- .25 Amps at 24VDC* continuous duty
- *Note: DC must be well filtered with ripple less than 1 volt RMS.
Standard Features
- Stainless steel construction
- Tamper resistant
- Static strength 2,500 lbs. (fail secure)
- Dynamic strength 350 ft-lbs. (fail secure)
- Endurance 1,000,000 cycles
- Fail secure (standard)
- Dual voltage 12 or 24VDC continuous duty
- Non-handed
- Internally mounted solenoid
- Accommodates up to 1″ deadbolt
- Plug-in connector
- Full keeper shims for horizontal adjustment
- Trim enhancer
- Five year limited warranty
Optional Features
- Fail Safe
- LBM – Latchbolt monitor
- LBSM – Latchbolt strike monitor
- 27 interchangeable faceplate options (monitor switches may not work with all faceplate options)
Finishes
- 630 – Satin stainless steel
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 613 – Bronze toned
- 629 – Bright stainless steel
- BLK – Black
- *Complete Pacs are only available in the 630 finish
Attributes
Amp Draw: .45 @ 12V .25 @ 24V
Baa Qualified: Yes
Base Material: Stainless Steel
Commercial Residential: Commercial
Configuration: Universal
Country of origin: USA
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: No
For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
Frame Application: Metal or Wood
Function: Fail Safe
Grade: Grade 1
Holding Force: 3000 lbs.
Installation: Commercial
Keeper Size: 1″
Limited Warranty: 5 Years
Operating Voltage: 12/24 VDC
Origin: USA
Pack Height: 2.25″
Pack Length: 10.5″
Pack Qty: 1
Pack Volume: 79.73 in³
Pack Width: 3.38″
Series: 1006 Series Electric Strikes
Ship Weight: 2.4 lbs.
Subtype: Electric Strikes
Switch Type: Latchbolt Strike Monitor
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Resources
- 1006 Series Electric Strikes Cut Sheet
- 2023 HES Price Book (effective 4.17.2023)
- AA ESH Electric Strike Overview
- Electric Strike Selector Guide
- HES 1006 Series – Environmental Product Declaration (EPD)
- HES 1006 Series Dimensionsal Drawings
- HES 1006 Series Installation Guide (Dec. 2012 – Present)
- HES 1006 Series Installation Guide (Prior to Dec. 2012)
- HES 1006 Series Overview
- HES 1006 Series Sell Sheet
- HES Compatibility Chart
- HES Electric Strikes How to Order Guide
- HES Electric Strikes for Every Lockset Application
- HES Lock Cross Reference Chart
- Video: 1006 Electric Strike Series Installation
