CRL WH65642 Concealed High-Performance Casement Hinge Instructions
CRL WH65642 High Performance Concealed Casement Hinge is expertly designed for both out-swing and in-swing casement windows, ensuring superior functionality and durability. Crafted from heavy-duty stainless steel, this hinge guarantees long-lasting performance, making it an ideal choice for demanding architectural projects. The hinge measures a robust 10 inches (254 mm), providing the strength necessary to support larger window structures while maintaining a sleek, concealed appearance. Its high-performance design minimizes wear and tear, ensuring smooth operation over time, which is particularly beneficial for high-traffic areas. This product combines strength with a clean aesthetic, allowing it to seamlessly integrate into various architectural styles without compromising visual appeal. The mill finish enhances its contemporary look while ensuring resistance to corrosion, making it suitable for both residential and commercial applications. Additionally, compliance warnings are provided to ensure user awareness and safety. Whether you are a building professional or a knowledgeable homeowner, the CRL WH65642 is an essential component in creating functional and aesthetically pleasing window systems. With no shipping limitations, you can easily incorporate this hinge into your next project, knowing it meets the highest standards of quality and performance.
High Performance Concealed Casement Hinge
- Made of Stainless Steel
- Heavy Duty
- High Performance

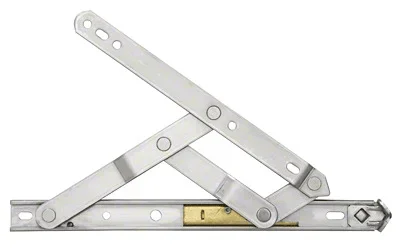

The heavy duty 10″ (254 mm) Stainless Steel Hinge is a high performance concealed casement hinge for out-swing and in-swing casement windows.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Mill
Shipping Limitations: None
