Description

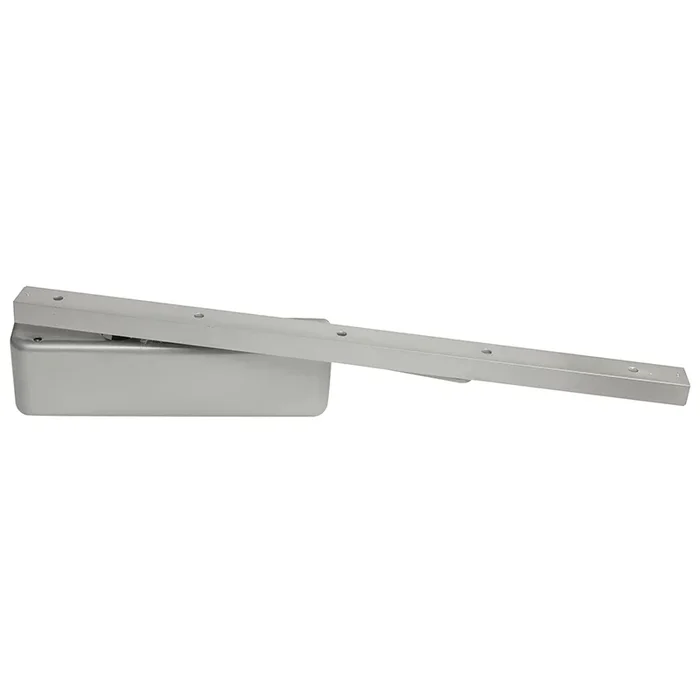

LCN 4513T-STD LH 689 SRI High Security Track Closer AL
LCN 4513T-STD LH 689 SRI High Security Track Closer AL is a robust solution designed for high-traffic environments requiring enhanced security. This left-handed standard arm track door closer features a special rust inhibitor, making it ideal for both correctional facilities and vandal-prone areas. Constructed with forged steel double lever arms and heavy gauge metal security covers, it minimizes the risk of tampering and vandalism while ensuring durability. The 4510T Series is engineered for interior doors up to 4’0″ and is UL listed for self-closing applications. Its hydraulic mounting group allows for smooth operation, while the slide track mounting style simplifies installation on the pull side of the door. This closer does not include a hold-open feature, maintaining its security integrity. Available in a sleek matte silver finish (689/US28), the closer can also be customized with optional powder coatings for added aesthetic appeal. With a limited two-year warranty and compliance with ANSI Standard A156.4, grade one, the LCN 4513T-STD ensures both reliability and safety. This high-quality closer is not just a functional component; it’s a vital part of any secure building infrastructure.
High Security Track Closer AL
Standard Arm Track Door Closer, Special Rust Inhibitor, Left Hand, Aluminum
The 4510T Smoothee is a heavy duty high security track door closer with special componentes to minimize tampering and vandalism. Forged steel double lever arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications.
The LCN 4510T Series is a heavy duty closer with a high security track.
The 4510T Series has a forged steel single lever arm and heay gauge metal security cover designed for correctional, vandal prone, institutional and other high trafficinterior applications.
- Standard 4510T series closer shipped with standard arm, security track. (non hold-open), track roller, metal security cover, and TORX Machine Screw pack. See 4510T Series page 21 for options.
- Sized cylinders for interior doors to 4’0”.
- Closer mounts hinge side, specify right or left swinging door.
- 4511T cylinder meets ADA requirements. See 4510T Series page 22.
- Standard or optional custom powder coat finish.
- Optional SRI primer for installations in corrosive conditions.
- The 4510T Series is UL listed for self-closing doors.
- Tested and certified under ANSI Standard A156.4, grade one.
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: Full Metal
Degree Swing: 180 Deg.
Finish: 689/US28
Finish Family: Matte Silver
Grade: Grade 1
Handing: Left-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 2 Years
Mounting Group: Hydraulic
Mounting Location: Pull Side
Mounting Style: Slide Track
Pack Qty: 1
Pbs Options: 4404199
Series: 4510T Series High Security Closers
Ship Weight: 15 lbs.
Special Rust Inhibitor: Yes
Subtype: Surface Closers
Type: Surface
Unit of Measure: Each
Resources
- 4510T Series High Security Closers Cut Sheet
- LCN 4010, 4010T, 4510, 4510T Drop Plate Installation Instructions
- LCN 4510T Series Installation Instructions
- LCN Closers & Auto Operators Installation Guide
- LCN High Security Series Catalog
- Von Duprin Finishes Chart
