Description

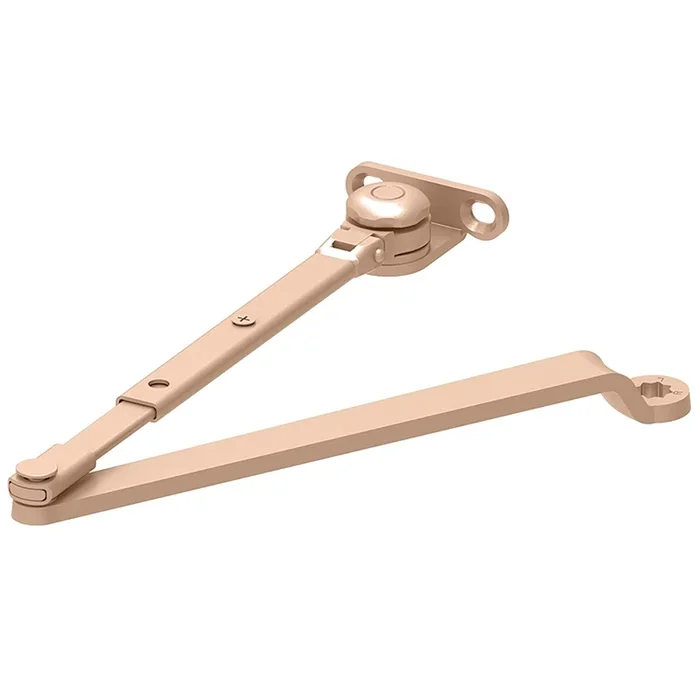

LCN 1260-3049 691 Hold Open Arm – LTBRZ
LCN 1260-3049 691 Hold Open Arm LTBRZ offers a robust solution for managing door movement in commercial spaces. Designed for light to medium-duty applications, this Grade 1 cast iron closer seamlessly adapts to the most common commercial footprint. With an adjustable spring size range from 1 to 5, it effectively accommodates various door sizes, allowing for ease of use in both interior and exterior settings-up to 4’6″ for interior doors and 3’6″ for exterior doors. The LCN 1260 features a full complement bearing, a 1-3/8 inch diameter piston, and a durable 5/8 inch heat-treated pinion journal for reliable performance. Its non-handed design simplifies installation, and the peel-n-stick template with a 3/4 inch x 9-1/16 inch mounting hole pattern ensures a straightforward setup. This closer meets ADA requirements, making it a compliant choice for accessibility. Additionally, the 1260 series includes options for custom finishes, including a standard or optional Slim Line cover, and an optional Quick Fix™ bracket kit for enhanced adaptability. Ideal for professionals seeking a versatile and economical solution, the LCN 1260-3049 delivers both functionality and style in a matte bronze finish.
Hold Open Arm LTBRZ
Hold Open Arm, Light Bronze Finish
The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.
Combines features of both the 1070 and 1370 LCN Series.
The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.
- Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
- Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Mounts to most common commercial footprint (3/4” x 9 1/16”)
- Closer meets ADA requirements. See 1260 Series catalog page 10
- Optional Quick Fix™ bracket kit
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- Optional Slim Line cover
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Finish: 691/US10
Finish Family: Matte Bronze
Handing: Non-Handed
Hold Open: Yes
Installation: Commercial
Mounting Style: Regular or Top Jamb
Pack Qty: 1
Series: 1260 Series Surface Mounted Closers
Subtype: Door Closer Arms
Type: Door Closers and Operators
Unit of Measure: Each
Resources
- 1000 Series Catalog
- 1260 Series Surface Mounted Closers Cut Sheet
- LCN 1000 Series Product Guide
- LCN 1000 Series Surface Mounted Closers Guide
- LCN 1260 Series Drop Plate Installation Guide
- LCN 1260 Series Quick Fix Bracket Installation Guide
- LCN 1261 CUSH Installation Guide
- LCN 1261 EDA Installation Guide
- LCN 1261 Series Installation Guide
- LCN 1261-62A Shoe Installation Guide
- LCN Closers & Auto Operators Installation Guide
- Von Duprin Finishes Chart
