Description

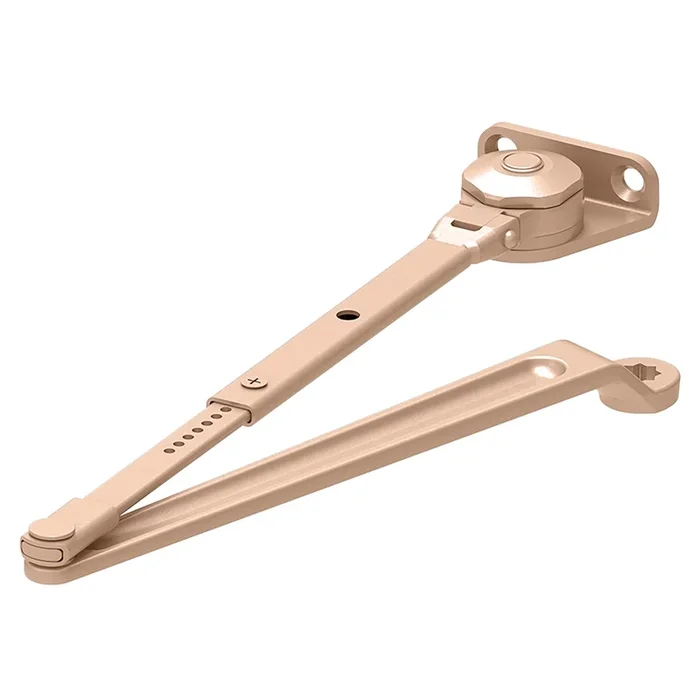

LCN 1460-3049 691 Hold Open Arm – LTBRZ
LCN 1460-3049 691 Hold Open Arm LTBRZ provides a reliable solution for your door control needs, designed specifically for use with the LCN 1460 Series. Featuring a light bronze painted finish, this hold open arm is non-handed, ensuring versatile installation options for both commercial and institutional applications.Built for durability, the LCN 1460 Series boasts a robust cast iron body with a full complement bearing, ensuring longevity and reliability. The adjustable spring size accommodates doors ranging from 1 to 6, allowing for precise control depending on the door size and site conditions. This universal closer can be installed in regular, top jamb, or parallel arm configurations on either right or left swinging doors, meeting ADA requirements for accessibility. Installation is streamlined with a stick-on template that reduces time and effort, while concealed adjustment valves protect against tampering and ensure smooth operation. The Cush-N-Stop® function includes a built-in stop to prevent damage from abrupt closures. Whether for high-traffic environments or more controlled settings, the LCN 1460-3049 provides flexibility, durability, and ease of maintenance, making it an essential choice for any professional looking to enhance door functionality.
Hold Open Arm LTBRZ
Hold Open Arm for 1460 Series, Light Bronze Painted Finish, Non-Handed
The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.
Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.
The LCN 1460 Series isavailable with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
- Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
1461 Series Features
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 2,000,000 cycles
- Fully adjustable 1-6 spring strength to suit door size and site conditions
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for adjusting backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Joints in arms and shoe brackets adapt to uneven mounting surfaces
- Stick-on template for fast, accurate installation. Cuts installation time in half
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
- Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Finish: 691/US10
Finish Family: Matte Bronze
Handing: Non-Handed
Hold Open: Yes
Installation: Commercial
Mounting Style: Regular or Top Jamb
Pack Qty: 1
Series: 1460 Series Surface Mounted Closers
Subtype: Door Closer Arms
Type: Door Closers and Operators
Unit of Measure: Each
Resources
- 1000 Series Catalog
- 1460 Series Cut Sheet
- 1460 Series Surface Mounted Closers Cut Sheet
- LCN 1000 Series Product Guide
- LCN 1000 Series Surface Mounted Closers Guide
- LCN 1460 Drop Plate Installation Guide
- LCN 1460 Product Guide
- LCN 1461 EDA Installation Guide
- LCN 1461 PA Mount Installation Guide
- LCN 1461 Peel-N-Stick Installation Guide
- LCN 1461 Product Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Video: LCN 1460 Door Closer Installation
- Von Duprin Finishes Chart
