Description

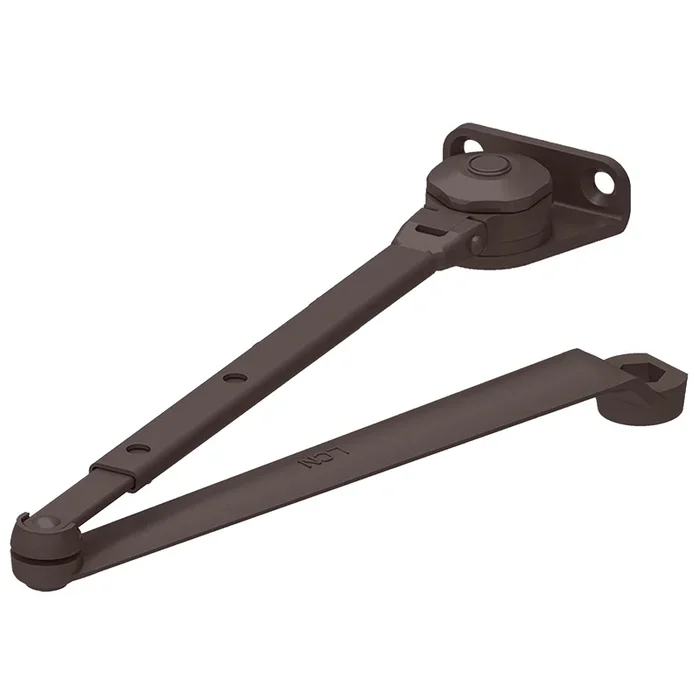

LCN 4040XP-3049L 695 Hold Open Long Arm DKBRZ
LCN 4040XP-3049L 695 Hold Open Long Arm DKBRZ is designed to provide exceptional performance in demanding environments. This heavy-duty closer features a robust construction that is ideal for high-traffic and institutional applications. The non-handed design allows for versatile installation, while the dark bronze painted finish adds an aesthetic touch to any door. With a 44% increased bearing load capacity and the strongest pinion ever at a 3/4″ journal diameter, the 4040XP series sets a new standard for reliability and longevity. The innovative V-shield™ seal ensures a 20% longer life, making this closer a smart investment. It also includes a double heat-treated steel pinion and all-weather fluid for year-round performance. This closer is adaptable for hinge side, top jamb, or parallel arm mounting, accommodating right or left swinging doors. It’s UL and cUL listed for safety and meets ADA requirements, ensuring compliance in any commercial setting. The LCN 4040XP can be easily installed with the LCN® Fast™ Power Adjust feature, and it’s compatible with all 4040 accessories. Backed by a 30-year limited warranty, the 4040XP-3049L combines strength, efficiency, and remarkable value for your door hardware needs.
Hold Open Long Arm DKBRZ
Hold Open Long Arm, Includes Long Head and Tube, 4040XP-3048L for Top Jamb Mount, Dark Bronze Painted Finish, Non-Handed
LCN’s most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCNbuilt the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4″ journal diameter
- Widest bearing ever,at 5/8″
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0″
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Manufacturer surcharge: 4.5%
Application: For 4040XP Series Door Closers
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Country of origin: USA
Finish: 695
Finish Family: Dark Bronze
Grade: Grade 1
Handing: Non-Handed
Hold Open: Yes
Installation: Commercial
Limited Warranty: 30 Years
Mounting Style: Top Jamb
Origin: USA
Pack Qty: 1
Series: 4040XP Series Surface Mounted Closers
Subtype: Door Closer Arms
Type: Door Closers and Operators
Unit of Measure: Each
Resources
- 4040XP Brochure
- 4040XP Feature Enhancements
- 4040XP Series Cut Sheet
- 4040XP Series Surface Mounted Closers Cut Sheet
- 4040XP/4041DA Installation Instructions
- LCN 4000 Series Catalog
- LCN 4040XP Closer Installation Video
- LCN 4040XP Series Infographic
- LCN 4040XP/4041 DA 120 Degree Top Jamb Push Side Mount Installation Guide
- LCN 4040XP/4041 DA CUSH 85-90-100-110 Degree Push Side Mount Installation Guide
- LCN 4040XP/4041DA 120 Degree & 180 Degree Pull Side Installation Guide
- LCN 4040XP/4041DA Drop Plate Installation Guide
- LCN 4040XP/4041DA EDA 110-180 Degree Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Von Duprin Finishes Chart
