Description
LCN 1460T-3038HB 695 Hold Open Track with Bumper – DKBRZ
LCN 1460T-3038HB 695 Hold Open Track w/Bumper DKBRZ is a robust solution designed for both commercial and institutional applications. This Grade 1 door closer features a durable cast iron body, ensuring long-lasting performance and reliability. With a full complement bearing and a 1-1/4 inch diameter piston, it delivers consistent operation under heavy use. The adjustable spring size, ranging from 1 to 6, accommodates various door sizes and conditions, making it versatile for any installation. This model includes a hold-open feature with a bumper, enhancing convenience while protecting the door and frame from damage. Universally designed, it can be mounted on hinge side, top jamb, or parallel arm configurations for either right or left swinging doors. Additionally, the LCN 1460T-3038HB meets ADA requirements and offers multiple cover options, including a standard slim line and a designer series. Installation is simplified with a stick-on template, reducing installation time significantly. The independent adjustment valves for backcheck, closing, and latching speeds allow for precise control, while concealed valves prevent tampering. Available in a chic dark bronze finish, this closer combines functionality with aesthetic appeal, making it an ideal choice for any building project.

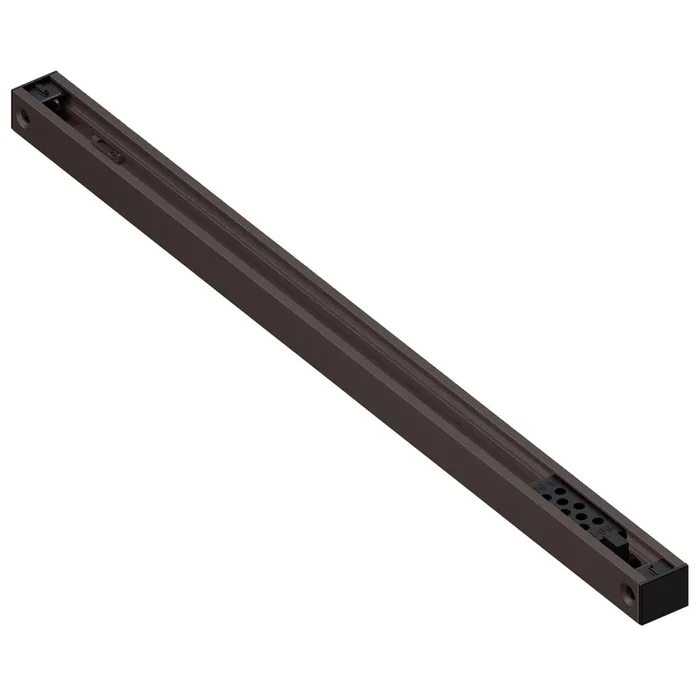

Hold Open Track w/Bumper DKBRZ
Track with Hold Open and Bumper for 1460 Series, Dark Bronze Painted Finish
The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.
Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.
The LCN 1460 Series isavailable with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
- Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
1461 Series Features
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 2,000,000 cycles
- Fully adjustable 1-6 spring strength to suit door size and site conditions
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for adjusting backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Joints in arms and shoe brackets adapt to uneven mounting surfaces
- Stick-on template for fast, accurate installation. Cuts installation time in half
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
- Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Finish: 695
Finish Family: Dark Bronze
Installation: Commercial
Pack Qty: 1
Series: 1460 Series Surface Mounted Closers
Subtype: Door Closer Parts
Type: Door Closers and Operators
Unit of Measure: Each
Resources
- 1000 Series Catalog
- 1460 Series Cut Sheet
- 1460 Series Surface Mounted Closers Cut Sheet
- LCN 1000 Series Product Guide
- LCN 1000 Series Surface Mounted Closers Guide
- LCN 1460 Drop Plate Installation Guide
- LCN 1460 Product Guide
- LCN 1461 EDA Installation Guide
- LCN 1461 PA Mount Installation Guide
- LCN 1461 Peel-N-Stick Installation Guide
- LCN 1461 Product Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Video: LCN 1460 Door Closer Installation
- Von Duprin Finishes Chart
