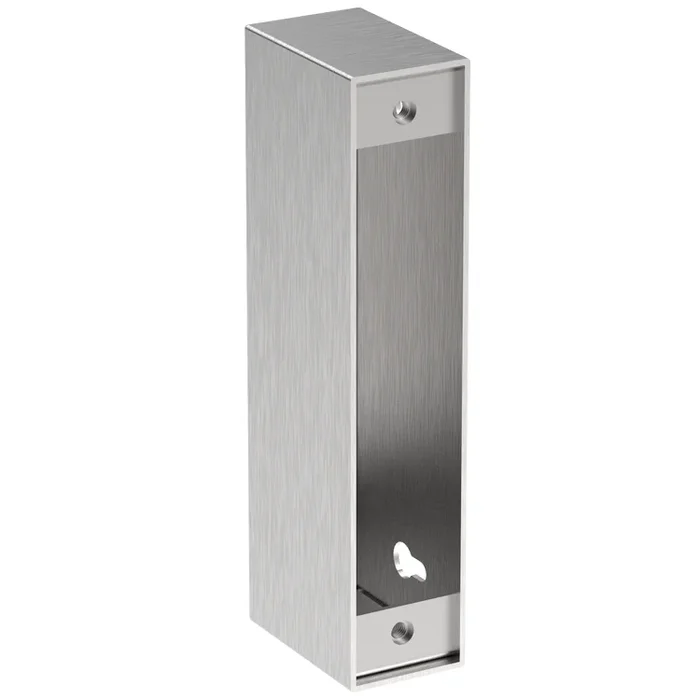

Rutherford Controls YD30S224 YD30S Housing Box with Tape for Single Swing Doors 9-7/16″ x 3-1/3″
Rutherford Controls YD30S224 Housing Box for YD30S with Tape for Single Swing Doors offers a robust solution for securing both commercial and residential properties. Designed specifically for the YD30 series electronic locks, this housing box is perfect for single swing doors and measures 9-7/16 inches long by 3-1/3 inches deep, ensuring a snug fit that enhances security and convenience. One of the standout features of the YD30S224 is its ability to correct door misalignment of up to 16mm, maintaining functionality even when faced with up to 1322 lbs of applied force. The unit boasts a remarkable 2204 lbs holding force and automatic deadbolting, providing peace of mind for high-traffic environments. Its user-selectable fail-safe and fail-secure modes offer flexibility in security management, suitable for various applications. Constructed with 10mm thick stainless steel bolt pins, this housing box not only ensures durability but also supports easy conversion between fail-safe and fail-secure configurations. The YD30S224 has been rigorously tested for endurance, promising up to 1 million operations, and comes with a 3-year warranty. Compliant with various certifications, including UL and RoHS, it is an ideal choice for those prioritizing safety and performance in access control systems.
Housing Box for YD30S with Tape for Single Swing Doors 9-7/16in Long x 3-1/3in Deep
Notice: The info below is not item specific.
The YD30 series electronic locks are motor driven electronic locks designed to secure commercial and residential single and double acting doors. The YD30 series gives the user the ability to control access in and around a facility and provide traffic reports when desired. Additionally, the YD30 series can be used in a more straightforward system where controlling access to a single door can be implemented with a stand-alone RTE access system. A high traffic, low voltage, motor-driven door lock. YG30 series are typically activated by access control systems and used in commercial entrance doors in either mortise or surface installation as well as swing-through glass doors where security is paramount, convenience required, and appearances important.
Features:
- Correcting door misalignment of up to 16mm (+/-8 mm)
- Door will still release with excess of 1322 lbs (600kg) applied force
- Automatic deadbolting
- 2204 lbs (1,000 Kg) holding force
- 10mm thick stainless steel bolt pins
- User selectable fail safe and fail secure
- Assist with door alignment
- Automatic deadbolting providing high security
- Easily converts from fail safe to fail secure
- Versatile installation
Technical Details:
- YD30S: 6-1/4″ x 1-1/4″ x 1-7/8″ (160 x 30 x 47mm)
- Energy: 12-24 VDC 40mA@12VDC, 25mA@24VDC; Peak: 0.75A@12VDC, 0.4A@24VDC
- Strength 2204lbs (1000kg) holding force; 1322lbs (600kg) sideload
- Warranty: 3 years
- Endurance: 1 million operations
- Mode: Fail Safe/Fail Secure selectable
- Monitoring: Door and bolt positions
- Certifications: CE, RoHS 2, FCC Part 15 / IC RCM, UL Listed EN 14846:2008 Certified Suitable for use on fire resistant doors (UL 10C; 3 hrs)
- UL10C For use in vertical orientation with any UL swinging type fire door frame rated up to and including 3 hours
Attributes
Alternate Codes: YD30S224
Category: Lock Sets, Standalone/Pushbutton Locks
Compatibility: YD30S
Door Application: Misc. Parts
Manufacturer: RCI Rutherford Controls
Part Type: Housing
